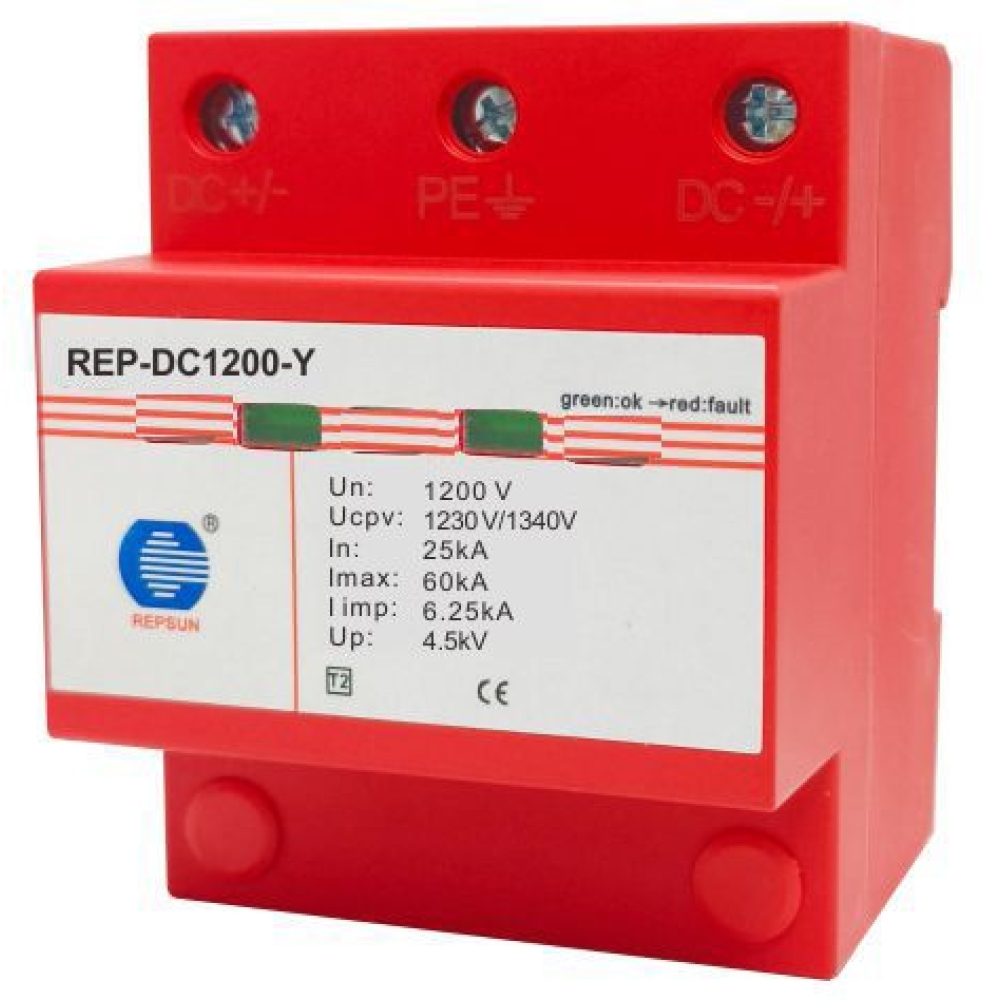

Surge Protective Device DC1200-Y

Name: Surge Protective Device DC1200-Y
SKU: 413
Rating: 5 (1412 reviews)

PRODUCT DETAILS

Features

DC SPD, integrates fuse thermal disconnector and mechanical disconnector in the module with safe electrical isolation;
High reliability due to panted dual thermal disconnector technology;
More reliable over-current protection thanks to integrated d.c. fuce;
Enough safety distance with creepage distance more than 30mm.

Datasheet

Model	REP-DC1200-Y
The SPD according to IEC 61643-31:2018, EN 61643-31:2019	Type 2
Nominal PV System Voltage(DC) Un	1200V
Maximum continuous operating voltage (DC) Ucpv	1230V/1340V
Short-circuit current rating Iscpv	2000A
Protection mode	DC+ to DC- or DC+/- to PE
Nominal discharge current(8/20μs) [(DC+/DC-)→PE] In	25kA
Maximum discharge current(8/20μs) [(DC+/DC-)→PE] Imax	60kA
Lightning Impulse current (10/350μs) [(DC+/DC-) →PE) (Iimp)	6.25kA
Lightning Impulse current (10/350μs) [(DC+/DC-) →PE) Itotal	12.5kA
Voltage protection level(Up)	4.5kV
Response time(t.)	25ns
Leakage current	≤10μΑ
Internal overheating circuit breaker	Built-in
Operating temperature range	-40℃...+80℃
Work/Fault indicator	Green: Normal ; Red: Failure
Connecting wire	≥4mm²
Installation	35mm DIN rail, according to EN 60715
Enclosure material	Red thermoplastic material, UL 94 V-0
Degree of protection	IP20
