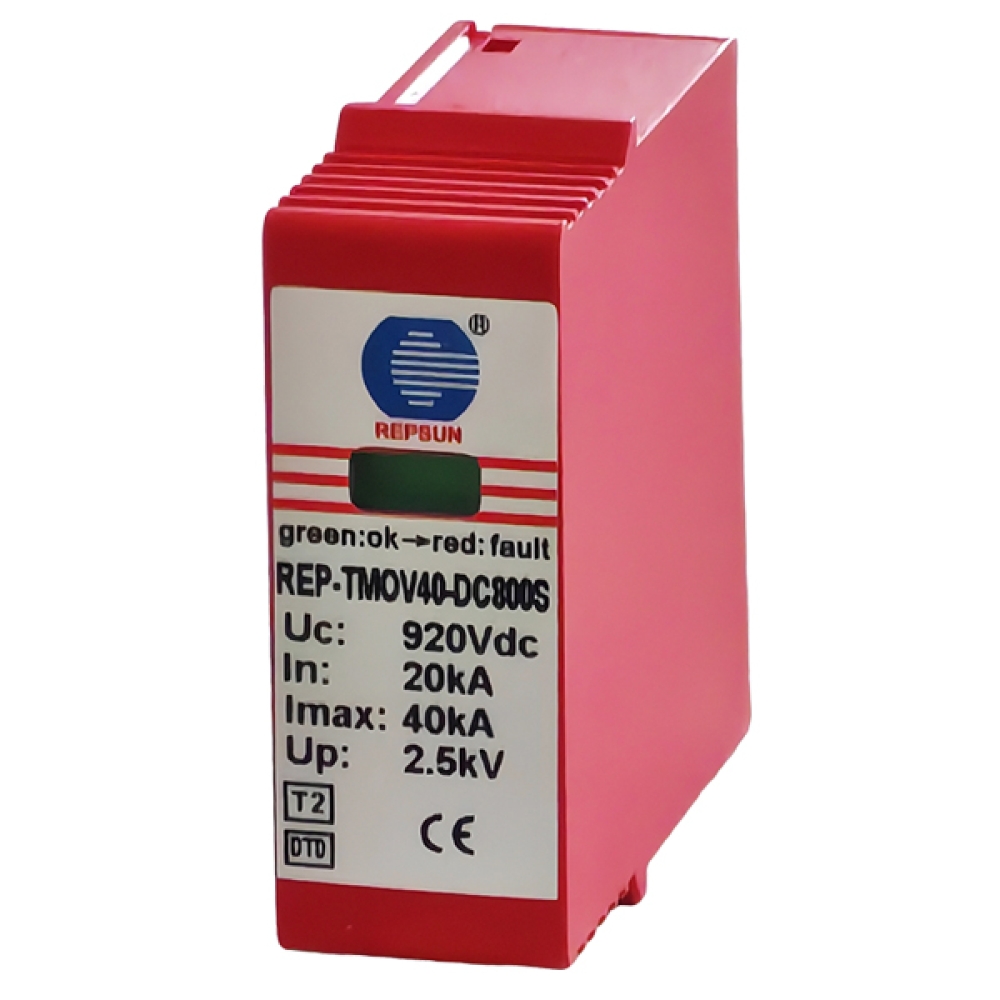

REP-TMOV40-800S

PRODUCT DETAILS

Features

• Small size, applied in PCB or SPD panel to absorb the surge and interrupt any abnormal current that may be encountered
• New patent and TUV certified, quick thermal response and perfect circuit cutoff function due to double thermal disconnection design
• Wide operating temperature range and high reliability
• Remote alarm contact optional

Datasheet

Model	REP-TMOV40-800S
The SPD according to IEC/EN 61643	Type 2
Nominal Voltage Un	800Vdc
The maximum operating voltage Uc	920Vdc
Maximum continuous operating voltage Uc	20kA
Nominal discharge current(8/20μs) In	40kA
Voltage protection level Up@In	≤2.5kV
Response time	≤25ns
Remote alarm contact	Remote alarm contact optional
Remote alarm contact capability Un/In	AC:250/0.5A DC:250V/0.1A;75V/0.5A
Remote alarm contact connecting wire	Max.1.5mm² or#16AWG
Operating temperature range	-40℃...+80℃
Work/Fault indicator	Green: Normal ; Red: Failure
Enclosure material	Thermoplastic; extinguishing degree UL94 V-0
Remote alarm contact	NO/NC/C,Isolated Form C
Degree of protection	IP20
Enclosure material	Red thermoplastic material ,UL 94v-0
Installation methods	PCB
Dimensions(mm)	Diagram
