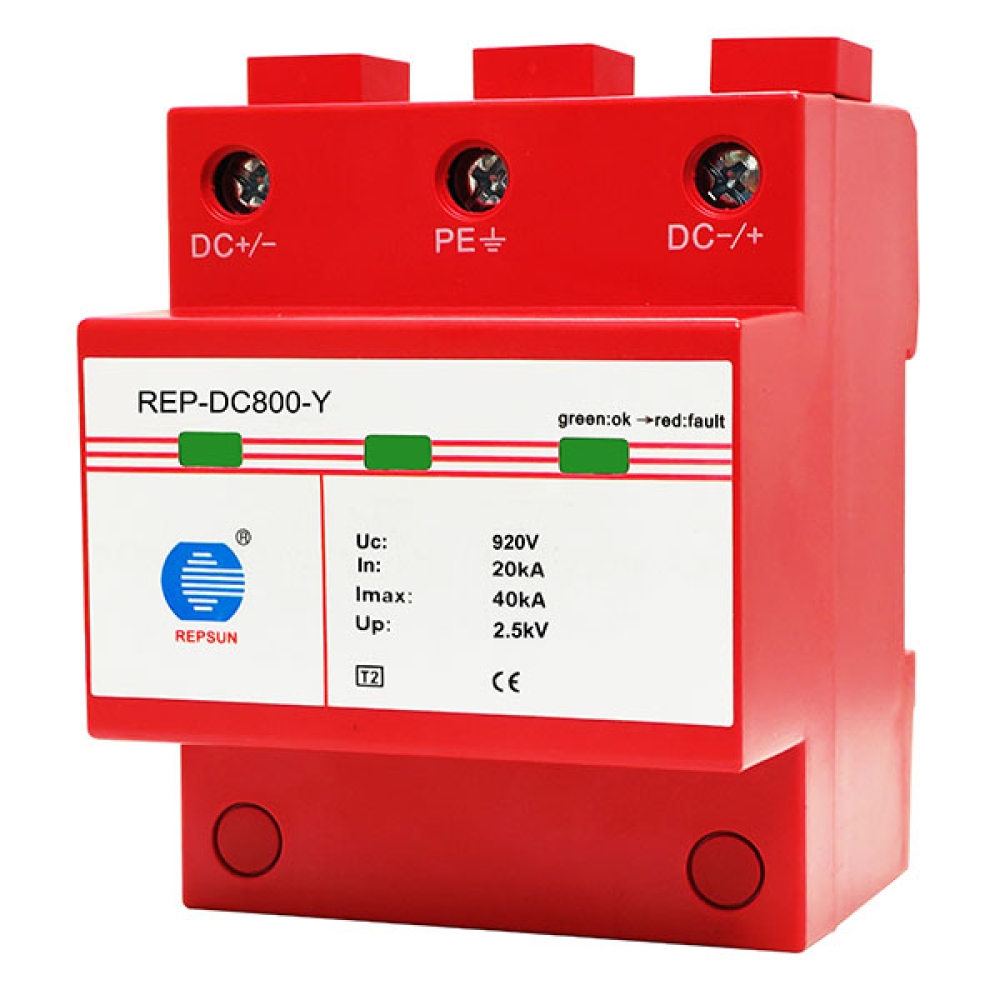

REP-DC800-Y

PRODUCT DETAILS

Features

• Innovative integration of fuse thermal disconnector and mechanical disconnector in the module
• High reliability due to patented dual thermal disconnector(DTD) technology
• Enough safety distance with creepage distance more than 30mm
• Failure indication window,remote alarm terminal optional
• Applications in Data Centers,ESS and BESS

Datasheet

Model	REP-DC800-Y
According to IEC 61643-41:2025	Type1+Type2
Nominal Voltage Un	800Vdc
Maximum continuous operating voltage Uc	920Vdc
Short-circuit Current Isccr	2000A
Nominal discharge current(8/20μs) [(DC+/DC-)→PE] In	20kA
Maximum discharge current(8/20μs) [(DC+/DC-)→PE] Imax	40kA
Lightning Impulse Current (10/350μs) [(DC+/DC-)->PE) (Iimp)	6.25kA
Voltage protection level(Up)	≤2.5kV
Recommended series connection overcurrent protector	63A/35KA
Leakage current	≤10μA
Response time(t.)	≤25ns
Internal overheating circuit breaker	Built-in
Work/Fault indicator	Green: Normal ; Red: Failure
Connecting wire	≥4mm²
Operating temperature range	-40℃...+80℃
Enclosure material	Red thermoplastic material ,UL94 V-0
Mounting	35mm DINrail,according to EN 60715
Degree of protection	IP20
Installation width	4modules
Dimensions(mm)	Diagram
