PRODUCT DETAILS
Features
● Combined disconnection and short-circuiting device with safe electrical isolation in the protection module.
● High reliability due to dual integrated disconnection devices.
● More reliable over-current protection modules with arcextinguish thanks to integrated d.c. fuse.
● Enough safety distanec with creepage distance more than 30mm.
Datasheet
| Parameter | Specification |
| Model | REP-PV1200 |
| According to EN50539-11;IEC/EN 61643-31 T | Type 2 |
| Normal voltage(DC)Un | 1200V |
| Max. continuous operating voltage(DC)Ucpv | 1340V |
| Short circuit tolerance(Iscpv) | 2000A |
| Nominal discharge current(8/20μs)[(DC+/DC-)→PE] (In) | 20kA |
| Maximum discharge current(8/20μs)[(DC+/DC-)→PE] (Imax) | 40kA |
| Voltage protection level(Up) | ≤4.5kV |
| Recommended series connection overcurrent protector | 63A/35KA |
| Response time | 25ns |
| Leakage current | ≤10μA |
| Internal overheating circuit breaker | Built-in |
| Operating temperature range | -40℃~+80℃ |
| Work/Fault indicator | Green: Normal ; Red: Failure |
| Connecting wire | ≥4mm² |
| Installation | 35mm DINrail,according to EN 60715 |
| Enclosure material | Red thermoplastic material , UL 94v-0 |
| Degree of protection | IP20 |

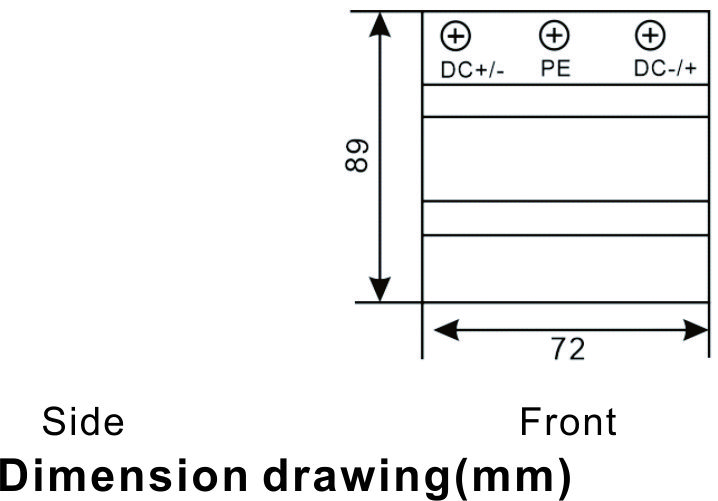

| Size | 4 modules |
 |
 |
