Model

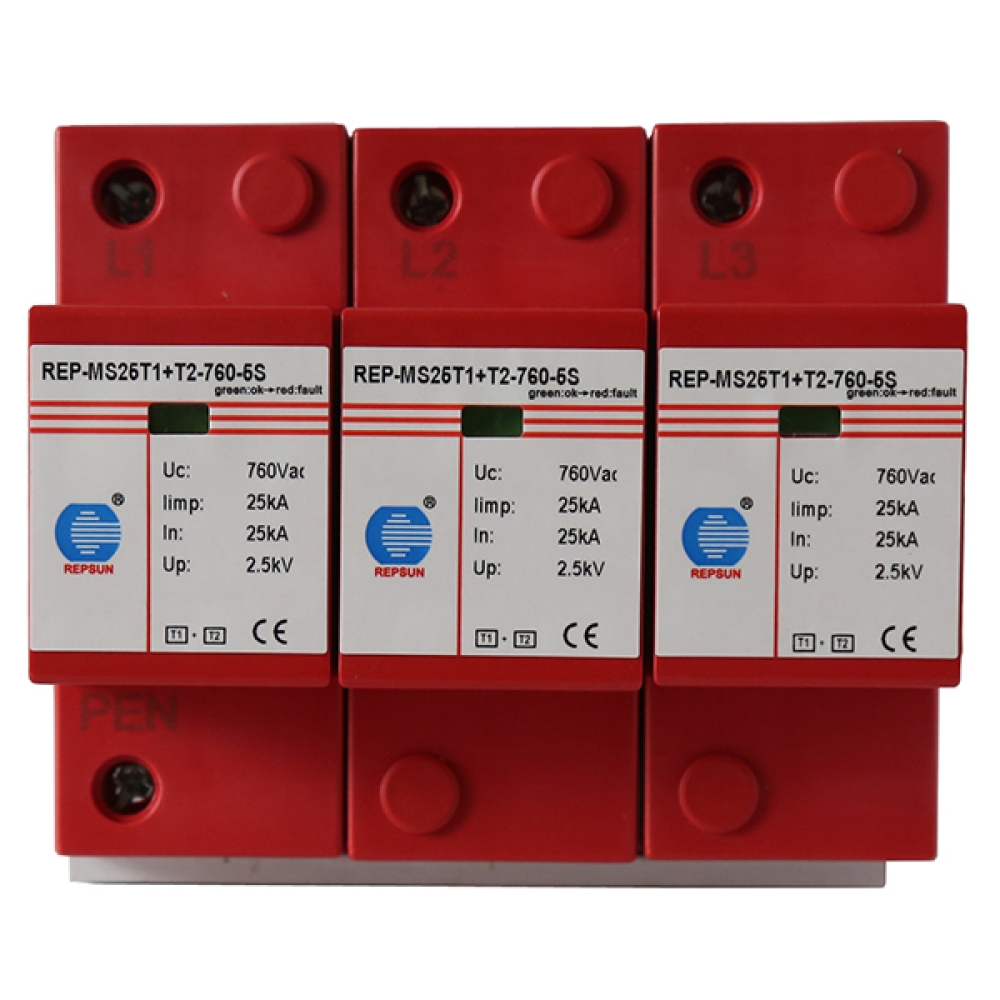

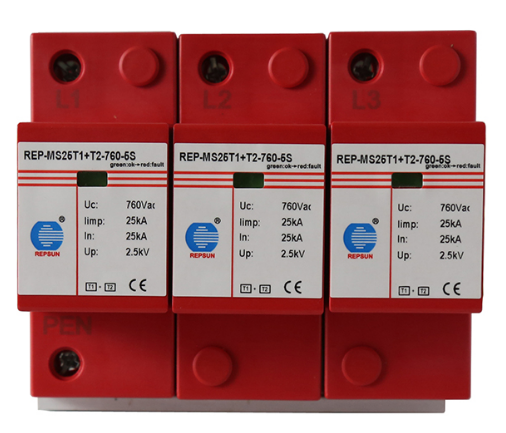

REP-MS25-T1+T2-760-5S
The SPD according to IEC/EN 61643-11
I+II/T1+T2
Energy coordination with termini equipment (≤5m)
T1+T2+T3
Response time(t.)
≤100ns
Nominal AC voltage(Un)
690Vac
Maximum continuous voltage(Uc)
760Vac
Impulse discharge current Iimp (10/350μs) (N-PE)
25kA
Nominal discharge current(8/20μs) ln(L-PE, N-PE)
25kA
Total discharge current(10/350μs)[L1+L2+L3-PEN] Itotal
75kA
Voltage protection level(Up)@10kA(8/20μs)
≤2.5kV
Voltage protection level(Up)@25kA(8/20μs)
≤3.5kV
Backup fuse
315AgL/gG
Temporary overvoltage(TOV) ) [L-PEN] Ut
440V / 120min.
Follow current extinguishing capability a.c.(L-N/N-PE) Ifi
25kA rms
Remote alarm contact
Remote alarm contact optional
Remote alarm contact capability Un/In
AC:250/0.5A DC:250V/0.1A; 75V/0.5A
Remote alarm contact connecting wire
Max. 1.5mm² or #16AWG
Remote communication contact type
Float switch contact
Ac switching capacity
250V/0.1A
The minimum cross-sectional area of installation
1.5mm² solid/flexible
The maximum cross-sectional area of installation
25mm² flexible
Operating temperature range
-40℃~+80℃
Work/Fault indicator
Green: Normal ; Red: Failure
Installation
35mm DIN rail, according to EN 60715
Shell material
35mmDINrail,according to EN 60715
The installation location
Red thermoplastic material ,UL 94v-0
Degree of protection
IP20
Size
6 modules
REP-MS25T1+T2-760-5S 108mm
