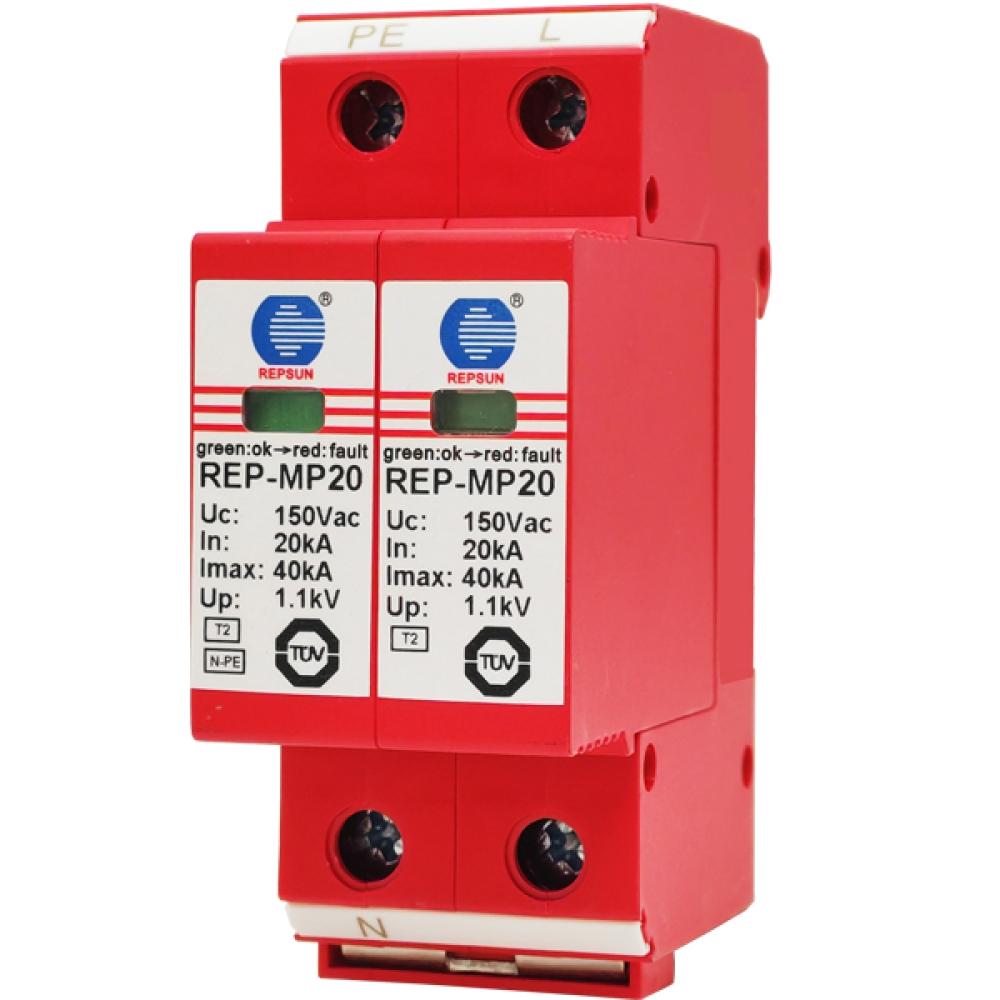

REP-MP20T2-150-1S

PRODUCT DETAILS

Features

• Type2 surge protector comply with IEC61643-11;
• Reliable supervision due to double integrated disconnection devices;
• Low voltage protection level;
• Optional to use without a fuse;
• Pluggable design, 1+1 protection mode;
• Remote alarm terminal optional.

Datasheet

Model	REP-MP20T2-150-1S
The SPD according to IEC 61643-1/-11	Type 2
Maximum continuous operating voltage Uc	150V
Nominal Operating Voltage	110V
Impulse discharge current Iimp (10/350μs)(N-PE)	12.5kA
Nominal discharge current In (8/20μs)	20kA
Maximum discharge current Imax (8/20μs)	40kA
Voltage protection level(Up)@In	1.1kV
Response time(t.)	25ns
Temporary overvoltage(TOV) UT	220V / 5sec.
Operating temperature range(Tu)	-40℃ to +85℃
Work/Fault indicator	Green: Normal ; Red: Failure
Remote alarm contact	NO/NC/C, Isolated Form C
Remote alarm contact capability Un/In	AC:250/0.5A ；DC:250V/0.1A;75V/0.5A
Remote alarm contact connecting wire	Max.1.5mm² or#16AWG
The minimum cross-sectional area of installation	1.5mm² solid/flexible
The maximum cross-sectional area of installation	25mm² solid/flexible
Installation	35mmDINrail,according to EN 60715
Shell material	Red thermoplastic material, UL 94v-0
The installation location	Indoor
Degree of protection	IP20
Size	2 modules
Certification	TUV
Dimensions(mm)	Diagram
