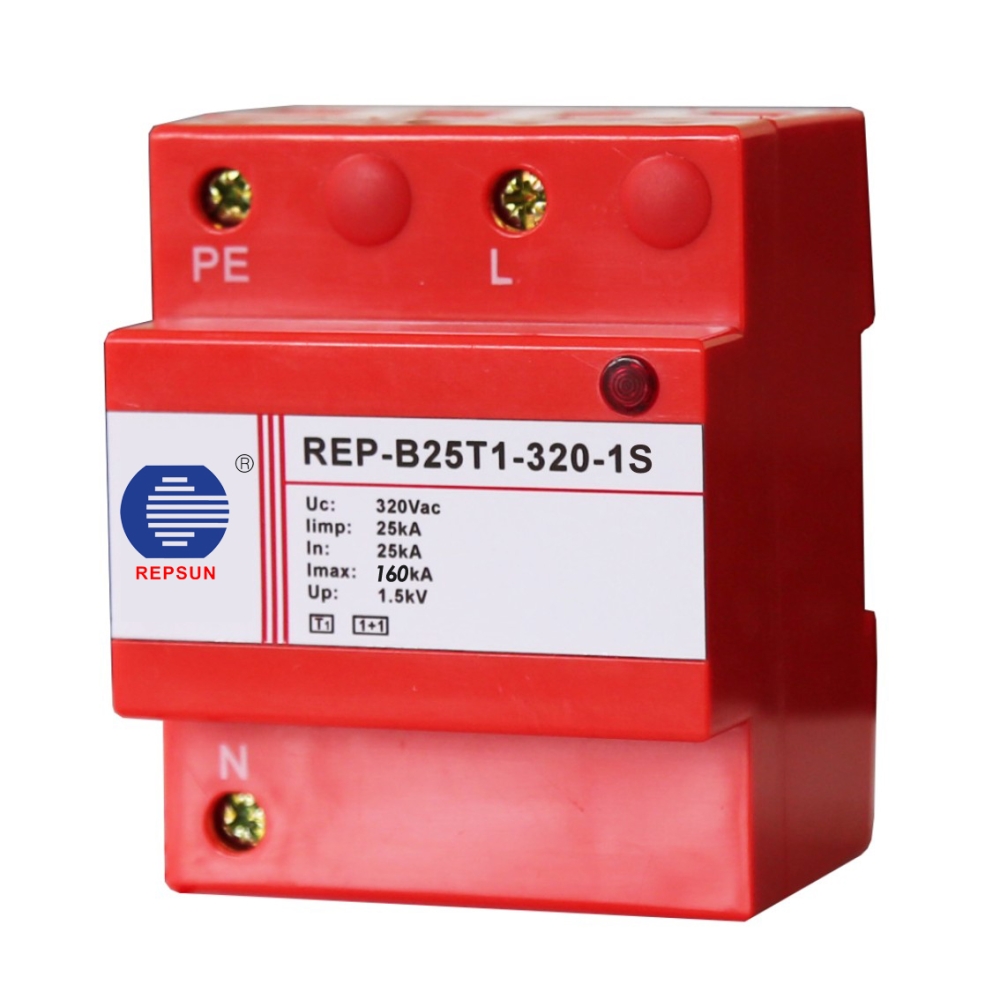

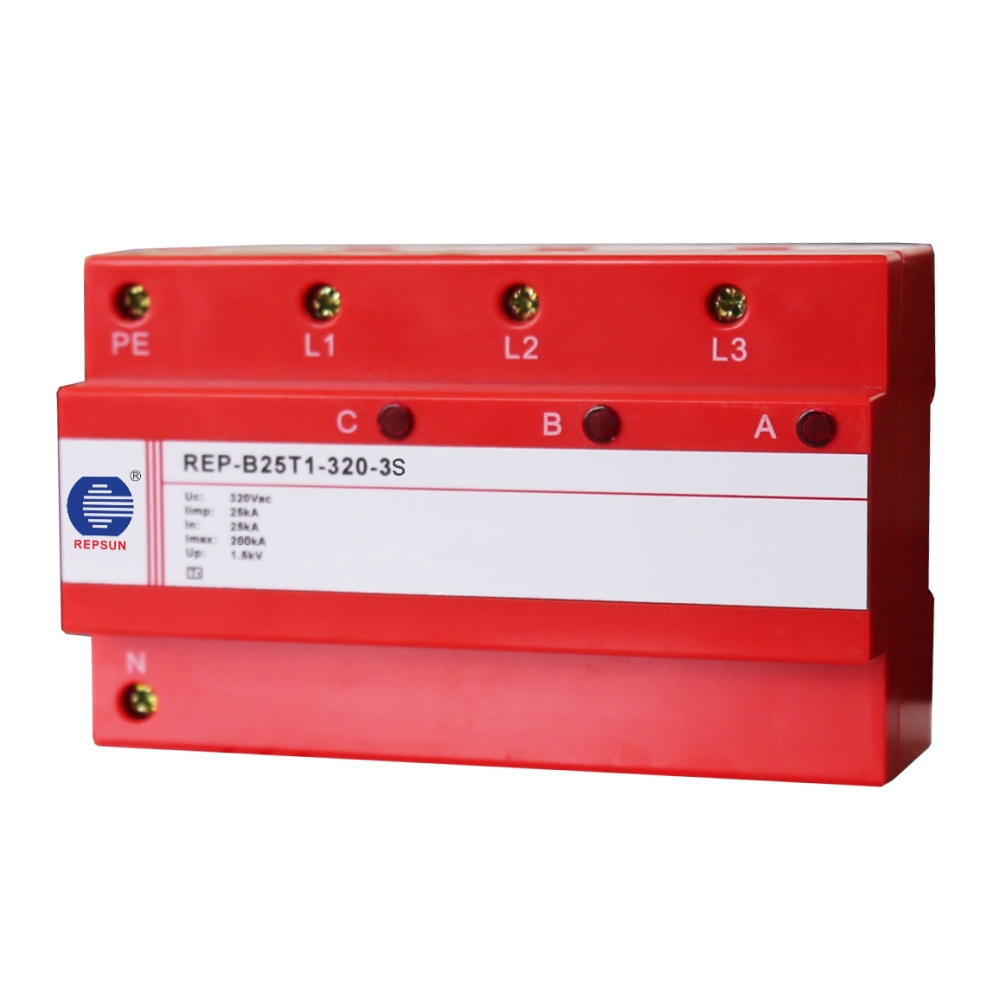

（T1 Surge Protector）REP-B25 Series

Name: （T1 Surge Protector）REP-B25 Series
SKU: 442
Rating: 5 (1441 reviews)

PRODUCT DETAILS

Features

● Type1 surge protector SPD.

● Non exhausting encapsulated spark gap technology with extremely high surge capacity.

● High follow current extinction and limitation due to no follow current technology.

● LTR energy control technology, directly coordinated to Type 2 SPD without additional length.

Datasheet

Type	REP-B25T1-320-XS
The SPD according to IEC/EN 61643	I/T1
Normal AC voltage(Un)	230/400Vac(50/60Hz)
Maximum continuous operating voltage(Uc)	320Vac(50/60Hz)
Lightning impulse current(10/350μs)(Iimp)[L-N,N-PE]	25kA/100kA
Nominal discharge current(8/20μs)(In)[L-N,N-PE]	25kA/100kA
Maximum discharge current(8/20μs)(Imax)[L-N,N-PE]	160kA
Voltage protection level(Up)	≤1. 5kV
Operating temperature range	-40℃~+80℃
Response time	≤100ns
Failure indication	Light-off: Normal ; Light-on: Failure
Remote alarm contact	Remote alarm contact optio
Degree of protection	Ip20
Enclosure material	Thermoplastic; extinguishing degree UL94-V0
Technical featur	No exhausting encapsulated spark gap technology
