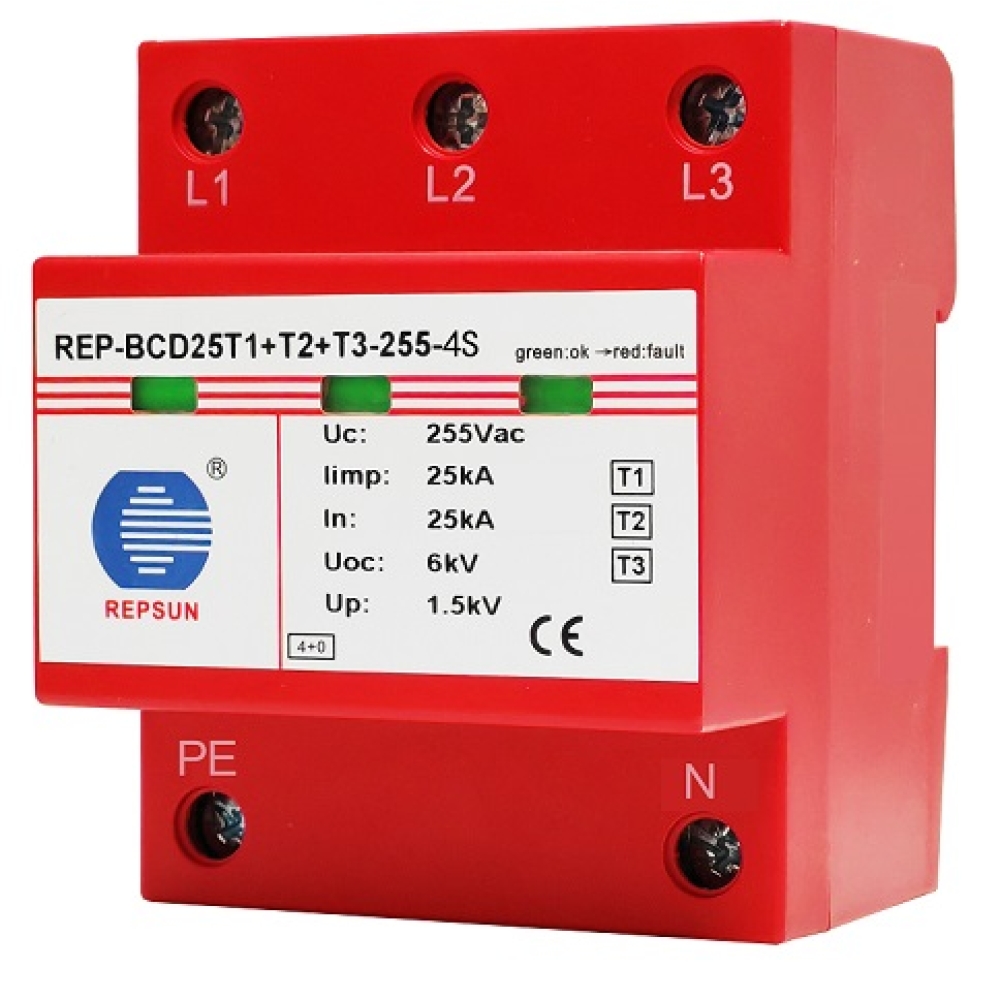

REP-BCD25T1+T2+T3-255-4S

Name: REP-BCD25T1+T2+T3-255-4S
SKU: 417
Rating: 5 (1416 reviews)

PRODUCT DETAILS

Features

Small combination plugable T1+T2+T3 SPD surge protector only 72mm for three phases.
Spark gap technology with high surge capacity and low voltage protection level.
High follow current extinction and limitation due to no follow current.
Reliable supervision due to new LTR energy control technology.
With remote signaling contact optional and mechanical failure indicator.

Datasheet

Model	REP-BCD25T1+T2+T3-255-4S
The SPD according to IEC/EN 61643-11	I+II+III+/T1+T2+T3
Energy coordination with termini equipment (≤5m)	T1+T2+T3
Response time	≤100ns
Maximum continuous voltage(Uc)	255Vac(50/60Hz)
Lightning impulse current(10/350μs) limp (L-PE)	25kA
Nominal discharge current(8/20μs) ln(L-PE)	25kA
Maximum discharge current(8/20μs) lmax(L-N)	120kA
Open circuit voltage (1.25/50μs) (Uoc)	6kV
Voltage protection level Up @ln	≤1. 5kV
Temporary overvoltage(TOV)(L-N)(UT)-Characteristic	≥440V/120min.-withstand
Additional abnormal voltage test:485Vac/50Hz for 24h	Withstand
Backup fuse(only required if not already provided in mains)	≤400A gL/gG
Remote alarm contact	NC/C,
Remote alarm contact capability Un/In	AC:250/0.5A DC:250V/0.1A; 75V/0.5A
Remote alarm contact connecting wire	Max. 1.5mm² or #16AWG
Operating temperature range	-40℃...+80℃
Work/Fault indicator	Green: Normal; Red: Failure
Cross-sectional area(min.)	1.5mm²solid/flexible
Cross-sectional area(max.)	35mm²flexible
For mounting on	35mm DIN rail
Enclosure material	Red thermoplastic, UL 94 V-0
Degree of protection	IP20
Size	4 modules
