Smart ESE Lightning Rod (Smart ESE)

Product Details

Features

Based on the traditional early streamer emission technology,REPSUN smart ESE Lightning Rod integrates the IoT technology to realize the smart lightning protection functions. It can not only provide traditional lightning protection, but also monitor the operation state of the lightning rod, the lightning strike and the temperature and humidity of the environment in real time. All monitoring data can be stored synchronously on the local server and the cloud server, and displayed in real time through the LCD screen and web platform. Additionally, REPSUN smart ESE Lightning Rod can quickly trigger alarms when operational anomalies occur and supports user-defined alarm thresholds according to their own needs.

Product Pictures

Smart ESE88

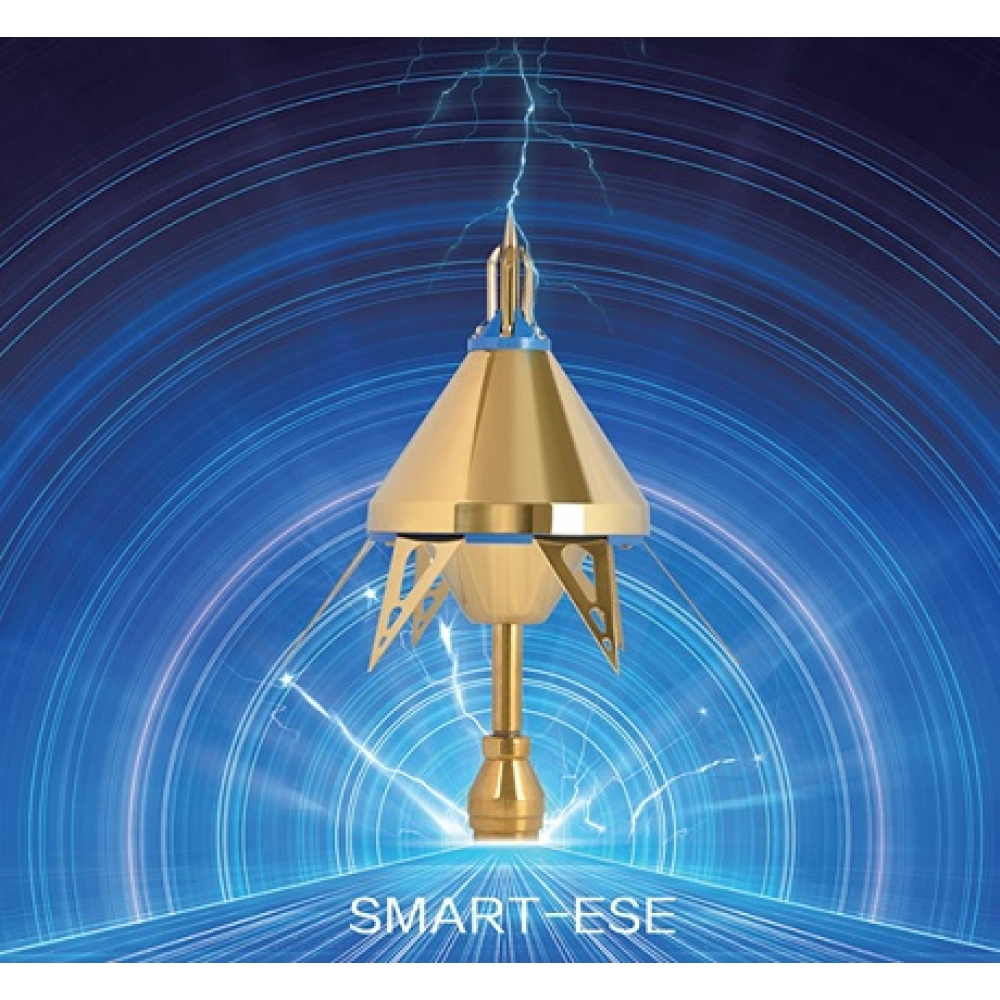

Smart ESE88(Golden)

Specifications

Model	Smart ESE88
Characteristics
Efficiency ΔT	60μs
Standard deviation ESE / Single rod σ	σPDA <0.4σ pts
Lightning current withstanding test (10/350µs) Iimp	100kA (normative test
Maximum current withstanding test (8/20µs) Imax	200kA (Unicamp)
Upward pole	6
Down pole	6
Net Weight	4.0kg
Operating principle
Detection of download leader	Continuous measuring of electric field gradient
Upward streamer emission	Sparking by High Voltage Impulse
Internal circuits	6 independent circuits
Central rod	Stainless Steel 304,Φ20mm
Metal housing	Stainless Steel 304
On-site testing capabilities	REP-ESE TESTER
Maintenance	No need to connect the power source
Warranty	10 years
Mechanical specifications
Fixing on pole	M20 Thread
Down conductor connection	Adapter (optional) Clamp
Certifications
NF C 17 102:2011, Annexe C	Beijing CNAS SPD test center
ISO 9001 : 2008	No.:04920Q01540R1M-2

Sencor functions

Model	Smart ESE
Sensor Functions	Reference value
ESE status	Close:Normal; Open:Abnormal
Lightning intensity(8/20μs)	Range:0.1kA-100kA
Lightning time	Min,Hour,Day,Month,Year
Lightning counter	0-999
Operating temperature	Range: -20℃~+65℃
Humidity	＜90%

Operation Principle

Smart ESE Lightning Rod	Sensor Functions	Neceessary	Data Transmission	Server	Terminal	Data Center
	Lightning Rod	Host	DTU(4G)	Cloud Server	Web	History Record
	ESE Status
	Lightning Intensity
	Lightning Time		RS485	Local Server	On site
	Lightning Counter
	Operating Temperature
	Humidity

Smart ESE installation
