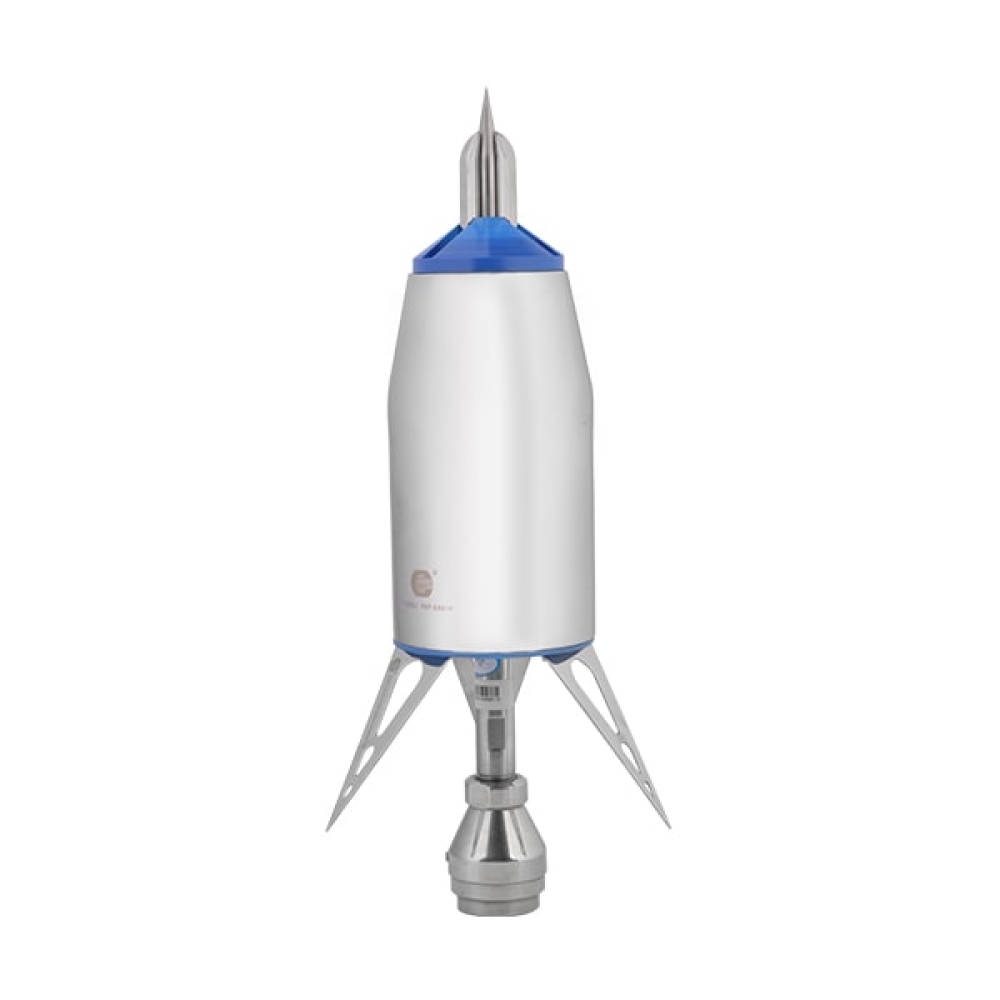

REPSUN ESE Lightning Rod (ESE25)

REP-ESE25

Characteristics

Efficiency

ΔT

25μs

Standard deviation ESE / Single rod

σ

σPDA <0.4σpts

Lightning current withstanding

test (10/350µs)

Iimp

100kA (normative test)

Max. current withstanding test (8/20µs)

Imax

200 kA (UniComp)

Upward pole

3

Down pole

3

Net Weight

3.5kg

Operating principle

Detection of download leader

Continuous measuring of electric field gradient

Upward streamer emission

Sparking by High Voltage Impulse

Internal circuits

3 independent circuits

Central rod

Stainless Steel 304,Φ20mm

Metal housing

Stainless Steel 304

On-site testing capabilities

REP-ESE TESTER

Maintenance

No need to connect  the power source

Warranty

10 years

Mechanical specifications

Fixing on pole

M20 Thread

Down conductor connection

Adapter (optional) Clamp

Packaging

Dimensions

402 x220 x220

Contents

ESE Instruction

Gross Weight

5KG

Environmental sustainability

100% recyclable

Certifications

NF C 17 102:2011, Annexe C

Beijing Testing Center Of Surge Protection Device  No.2008-(ESE)-003J14

ISO 9001 : 2008

NO.:04914Q10660R3M

Part No.

621150
