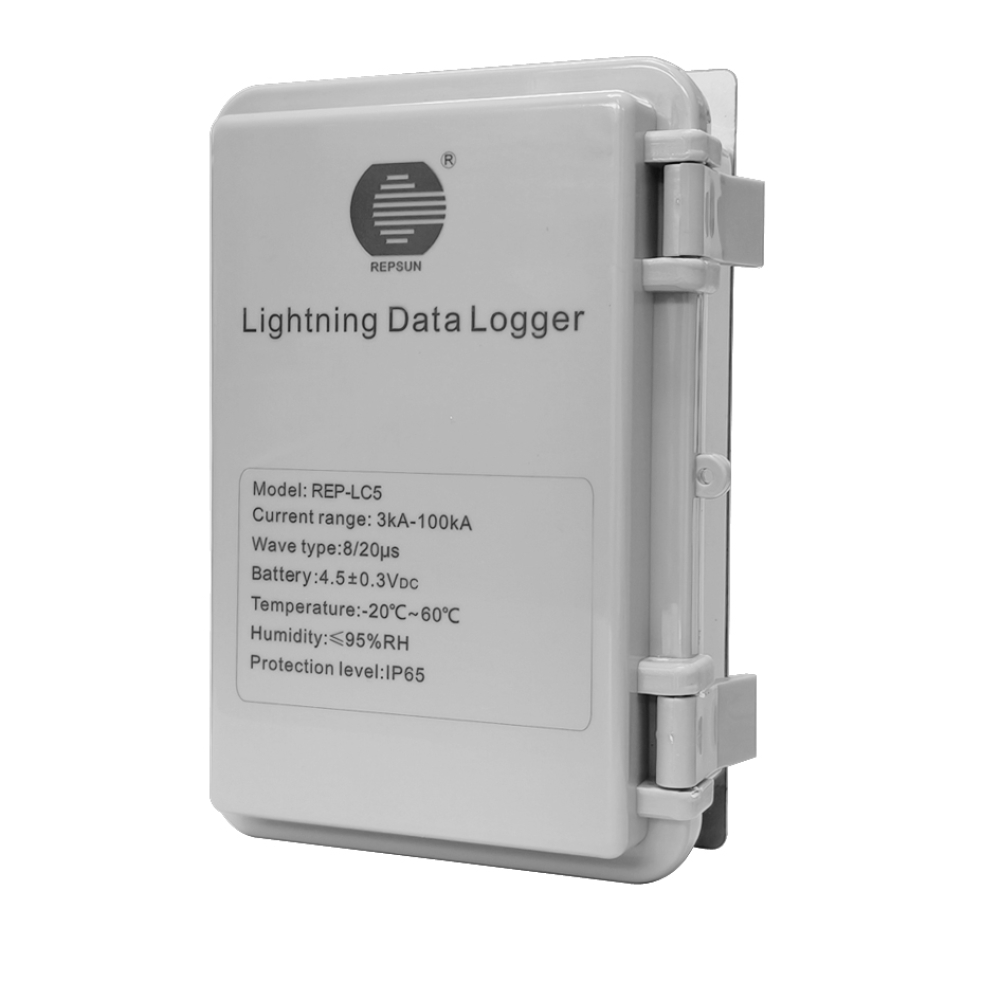

REP-LC5

PRODUCT DETAILS

Features

REP-LC5 lightning data logger is used to detect the numbers of lightning impulse current and its peak value, it having following characteristics:

● Being able to display 999 number of lightning shock occurrence and occurrence time.
● Being able to restore latest 600 records of the peak value of lightning impulse current.
● Precise counting, low respond current and wide testing range.
● EBe installed outdoors without maintenance.
● Easy installation without outlet wiring.
● Life of more than 5 years.

The explosion-proof mark is ExibIICT6 Gb. It can be applied in the 1 zone, 2 zone and explosive places. It passed the tests in the national testing center and be authorized with relative certificate.

Datasheet

Model	REP-LC5
Measuring range	100kA
Max counting	999
Min response current	3kA
Polanity	Positive/Negative
Response speed	1 time/60s
Enclosure protection degree	Ip65
Operating temperature range	-20℃~60℃
Operating relative humidity(under room temperature)	≤90%RH
Battery	AA alkaline battery 1.5V,3pcs
Voltage	4.5±0.3Vdc
Working manner	Continuous
Installation	Round conductor:φ8-φ20mm ; Max flat conductor: 15*50mm
Altitude	≤3000m
Explosion-proof mark	ExibIICT6 Gb
Diagram	Diagram
