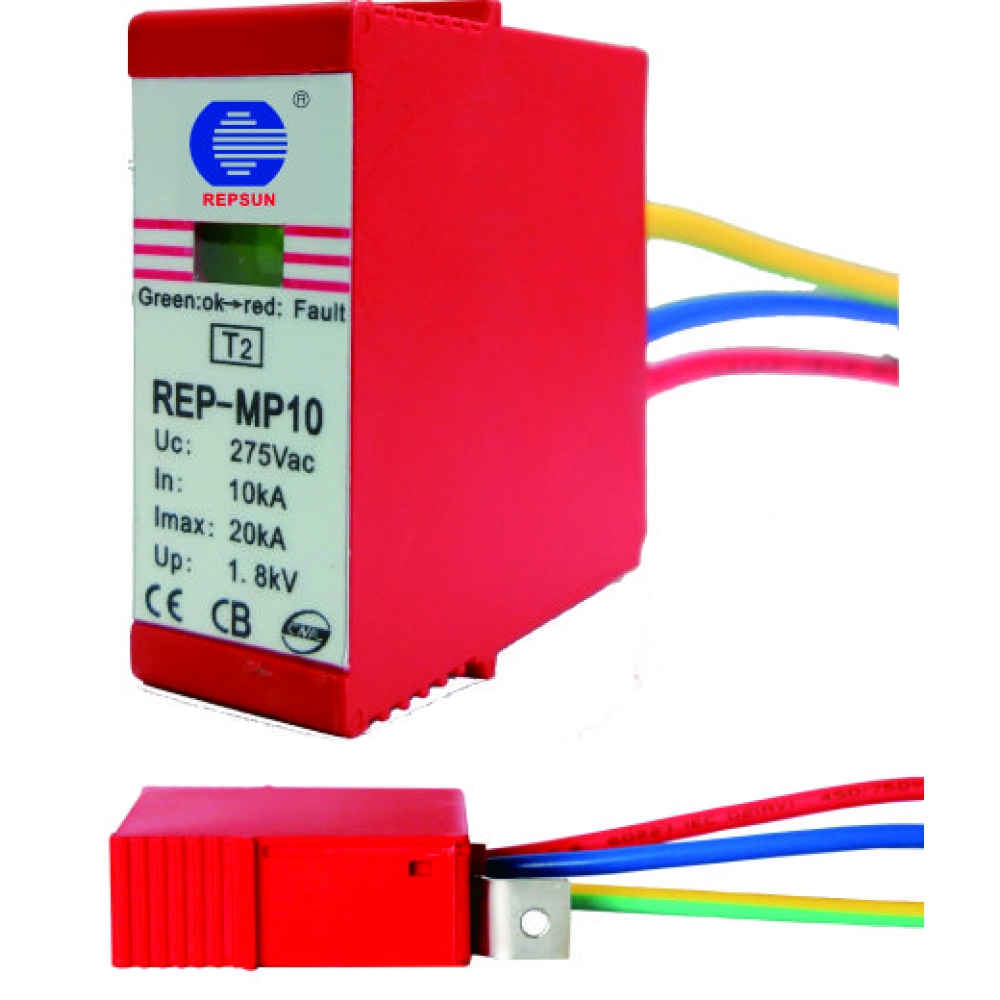

(SPD for LED Street Lighting)REP-MP10LED Series

Name: (SPD for LED Street Lighting)REP-MP10LED Series
SKU: 451
Rating: 5 (1450 reviews)

PRODUCT DETAILS

Features

● The REP-MP10LED is designed to protect single phase LED and lighting applications.

● Y-configuration full modes of protection.

● Mechanical disconnection indicator.

● High discharge capacity in a certain small size.

● Remote alarm contact optional.

Datasheet

Type	REP-MP10LED
The SPD according to IEC/EN 61643	III/T3
Normal AC voltage(Un)	230Vac single phase
Maximum continuous operating voltage(Uc)	275Vac
Nominal discharge current(8/20μs)(In)	10kA
Maximum discharge current(8/20μs)(Imax)	20kA
Voltage protection level(Up)	≤1.8kV
Response time	25ns
Operating temperature range	-40℃~+80℃
Remote alarm contact	Remote alarm contact optional
Degree of protection	IP20
Failure indication	Green: Normal ; Red: Failure

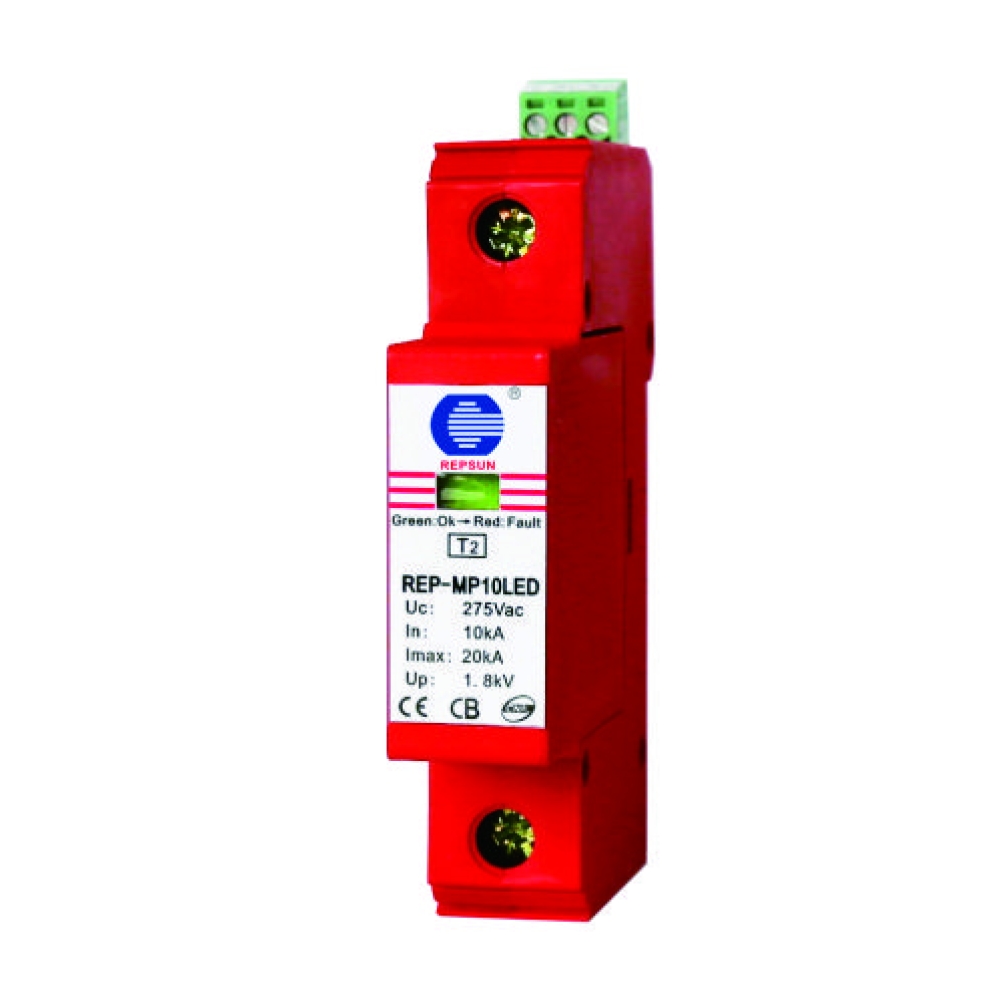

Mounting	Connected with copper wires or Din Rail optiona
Enclosure material	Thermoplastic; extinguishing degree UL94-V0

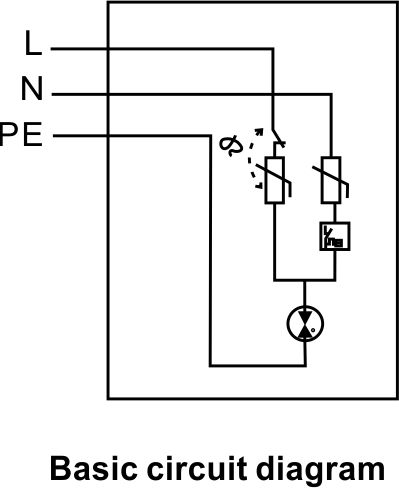

Technical feature	Y circuit, small size, offering full protection
