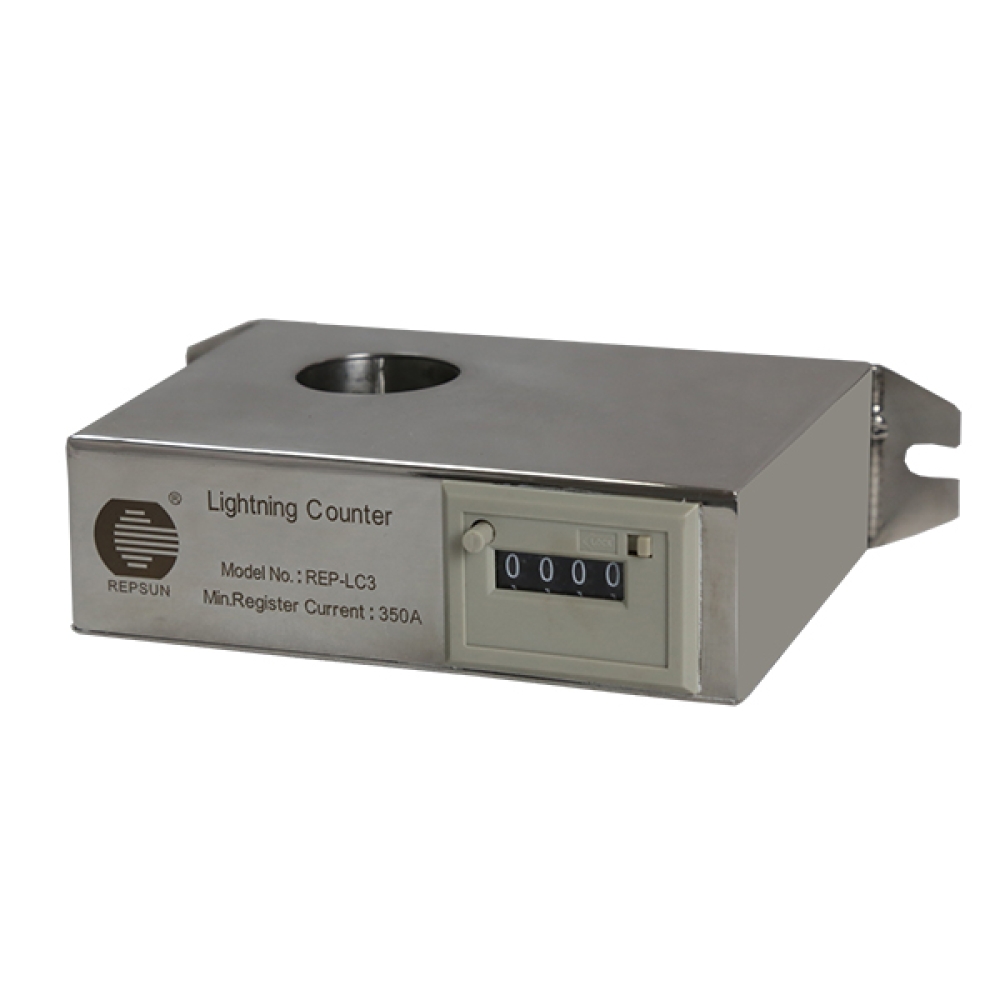

Lightning Event Counter(REP-LC3)

Name: Lightning Event Counter(REP-LC3)
SKU: 358
Rating: 5 (1357 reviews)

Product Details

Features

● Electromechanical lightning counter: with 4-digit display (0-9999) and one-button reset function;
● No need battery / power supply;
● Stainless steel enclosure:waterproof and flame-retardant;
● Easy Installation:30mm installation window, sensitive response, and wide measurement range;
● Compatible with various lightning protection devices and SPDs.

Datasheet

Model	REP-LC3
Minimum Current Sensitivity(rise time ≥8μs）	＞350A
Maximum Detectable Current(lmax)	100KA
Sequence of impulse	＞1s
Display Model	Electromechanical Counter
Indicator	Lightning Event 0~999999
Current Sample Mode	Inductive Probe(Built-in)
Working Mode	No battery/No power supply needed
Operation Temperature(°C)	-20°C~+70°C
Dimension of Installation Window (mm)	30mm
Dimension of Counter(mm)	110×33×82mm
Enclosure Material	Metal plate
Net Weight	0.46kg
