Lightning Event Counter(REP-LC2)

Name: Lightning Event Counter(REP-LC2)
SKU: 359
Rating: 5 (1358 reviews)

Product Details

Features

● With an energy-efficient design,160mA battery can be used for 2 years without charging;

● Thanks to the FLASH memory chip,data records are permanently stored after a power outage;

● Only one lightning strike is recorded for a series of successive lightning strikes due to filter technology;

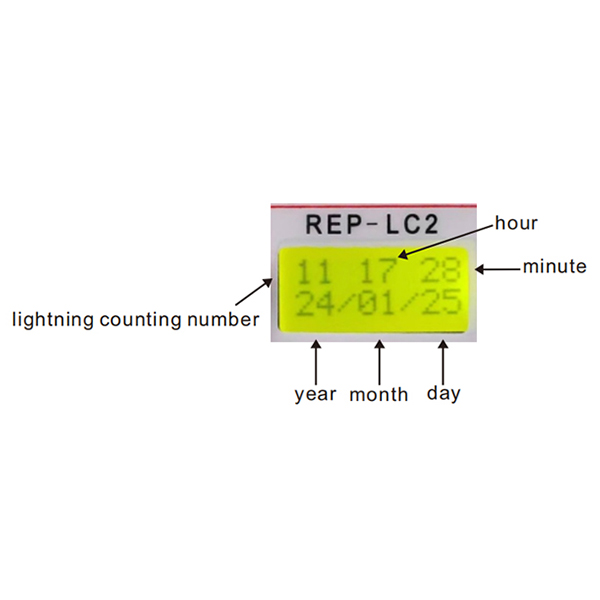

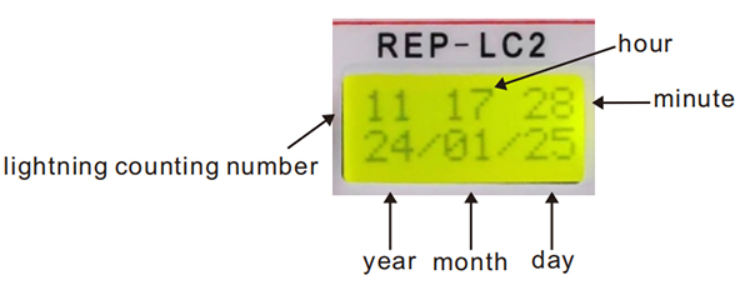

● Press TEST, and the counter results will be displayed.

Datasheet

Model	REP-LC2
Minimal detectable current	1KA
Maximal detectable current	100KA
Power supply	9V battery, changeable
Recording	By induction while lightning current pass through down conduct
Maintenance	Replaceable lithium batteries
Response time	＜10ns
Warranty	2 years
Display time(Can be set)	Year, Month, Day, Hour
Total count times	0-50
Installation width	Two standard modulus
Installation	35mm standard DIN rail (EN50022/DIN46277-3)
Enclosure material	Red thermoplastic UL94-V-0
Degree of protection	IP20
Net weight	0.7KG
