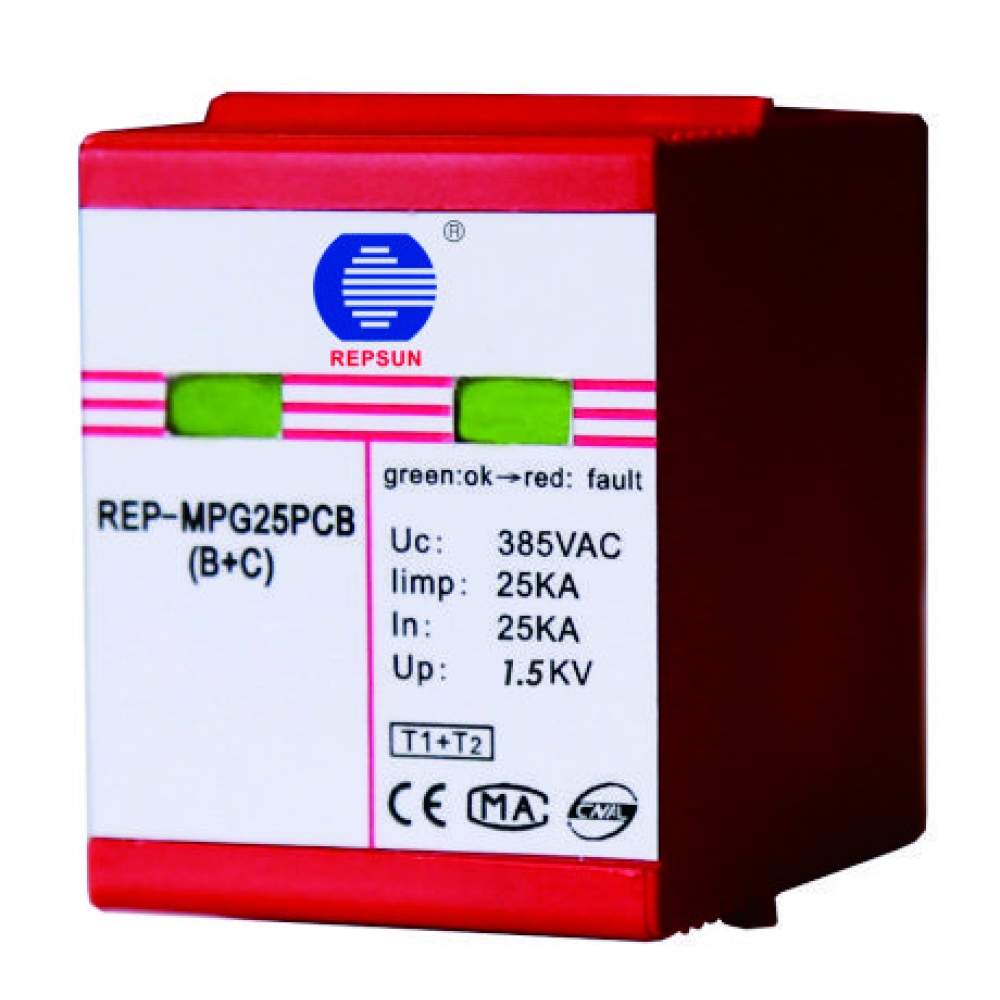

（SPD for PCB）REP-MPGXXPCB Series

PRODUCT DETAILS

Features

• Type1+Type2 combination surge protector.
• Sealed metal spark gap technology with extremely high surge capacity.
• Voltage protection level(Up)≤1.5kV, fast response time(≤25ns).
• Discharge capacity (Iimp:10kA-25kA), no follow current.
• Application in the AC mains, service entrance, and heavy industrial etc.

Type	REP-MPG25PCB	REP-MPG15PCB
The SPD according to IEC/EN 61643	I+II/T1+T2	I+II/T1+T2
Maximum continuous operating voltage(Uc)	385Vac	385Vac
Lightning impulse current(10/350μs)(Iimp)	25KA	15KA
Nominal discharge current(8/20μs)(In)	25KA	15KA
Maximum discharge current(8/20μs)(Imax)	160KA	120KA
Voltage protection level(Up)@In	≤1.5KV
Response time	25ns
erating temperature range	-40℃~+80℃
Remote alarm contact	Remote alarm contact optional
egree of protection	IP20
Failure indication	Green: Normal ; Red: Failure
Enclosure material	Thermoplastic; extinguishing degree UL94 V-0
