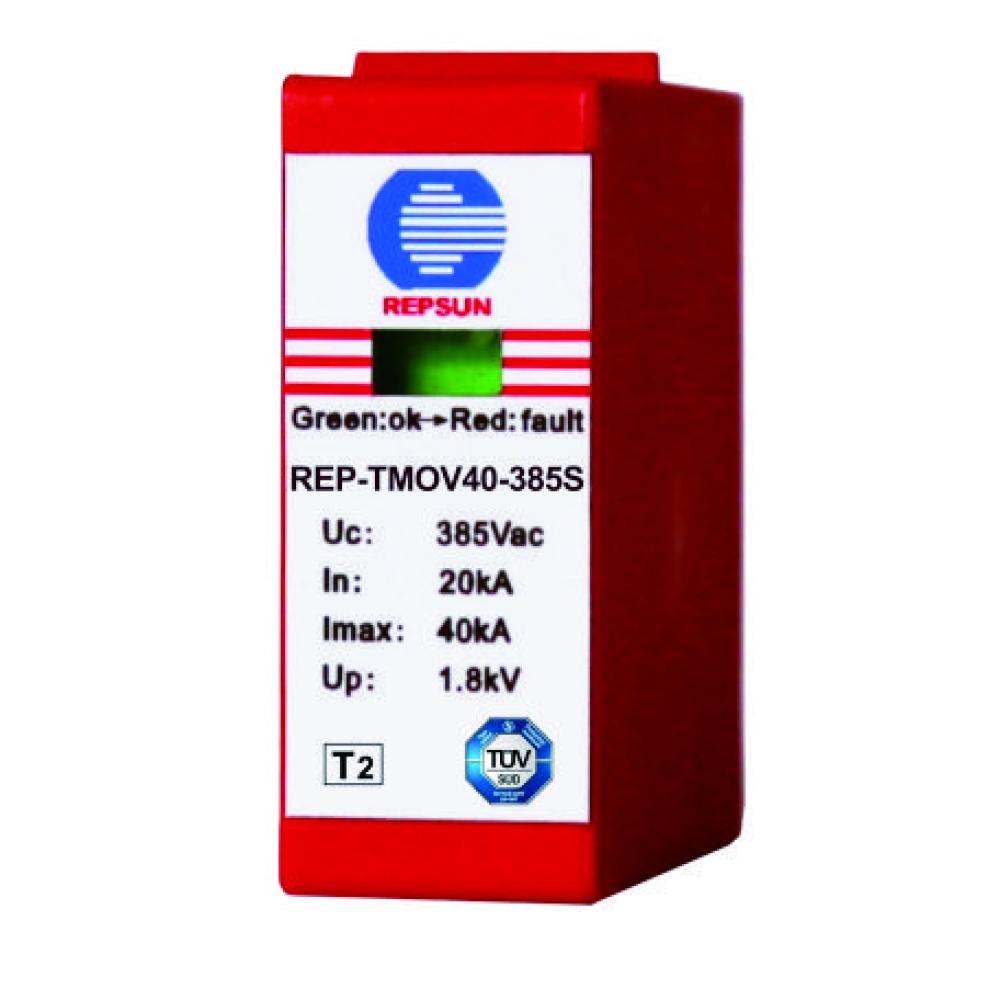

（SPD for PCB）REP-TMOV40 Series

PRODUCT DETAILS

Features

• Small size, applied in PCB and panel SPD to absorb the surge and interrupt any abnormal current that may be encountered.
• New patent and TUV certified, quick thermal response and perfect circuit cutoff function due to double thermal disconnection design.
• Wide operating temperature range and high reliability
• Remote alarm contact optional.

Datasheet

Type	REP-TMOV40-XXXS
The SPD according to IEC/EN 61643	II/T2
Maximum continuous operating voltage(Uc)	440Vac	385Vac	320Vac	275Vac	150Vac
Nominal discharge current(8/20μs)(In)	20kA
Maximum discharge current(8/20μs)(Imax)	40kA
Voltage protection level(Up)	≤2.0kV	≤1.8kV	≤1.5kV	≤1.2kV	≤1.1kV
Response time	25ns
Operating temperature range	-40 °C~+80°C
Remote alarm contact	Remote alarm contact optional
Degree of protection	IP20
Failure indication	Green: Normal ; Red: Failure
Enclosure material	Thermoplastic; extinguishing degree UL94-V0

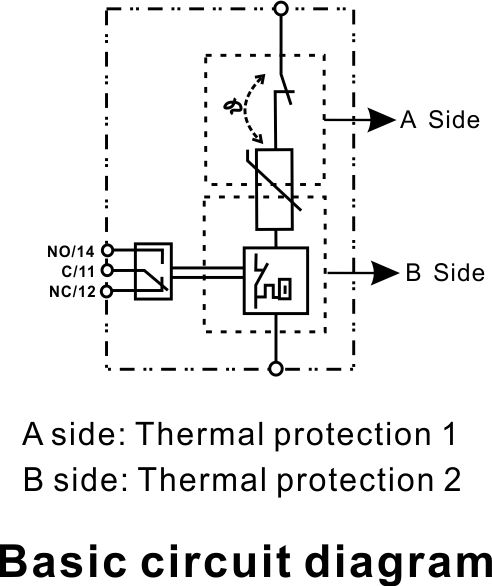

Technical feature	Double integrated disconnection devices with double protections
