PRODUCT DETAILS
Features
Datasheet
Model
REP-SD12
REP-SD32
REP-SD48
REP-SD110
Nominal voltage Un
12V
32V
48V
110V
Max. continuous d.c voltage Uc
14V
33V
55V
170V
Max. continuous a.c. voltage Uc
9.5V
23V
38.5V
120V
Nominal current II
1.5A
1.5A
1.5A
1.5A
Nominal discharge current(8/20 μs) per line In
5KA
5KA
5KA
5KA
Maximum discharge current(8/20 μs) per line Lax
10KA
10KA
10KA
10KA
Voltage protection level line-line @ln Up
≤55V
≤110V
≤175V
≤500V
Voltage protection level line-PG @ln Up
≤40V
≤65V
≤100V
≤270V
Voltage protection level line-line @ 1 KV/μs Up
≤36V
≤90V
≤160V
≤460V
Voltaqe protection level line-PG @ 1 KV/μs Up
≤19V
≤45V
≤80V
≤230V
Series impedance per line
1.8ohms
1.8ohms
1.8ohms
1.8ohms
Bandwidth line-PG
2.5MHz
6MHz
10MHz
16MHz
Capacitance line-line
≤1.2nF
≤0.5nF
≤0.3nF
≤0.2nF
Capacitance line-PG
≤2.4nF
≤1nF
≤0.6nF
≤0.4nF
Operating temperature range
40°C...+80°C
Degree of protection
IP 20
Mounting on
35 mm DIN rail
Connection input/output
spring / spring
Connection wire
0.08 — 2.5mm2
Earthing bv
Polyamide PA 6.6
Color
Green
Packing unit
1 pc(s)

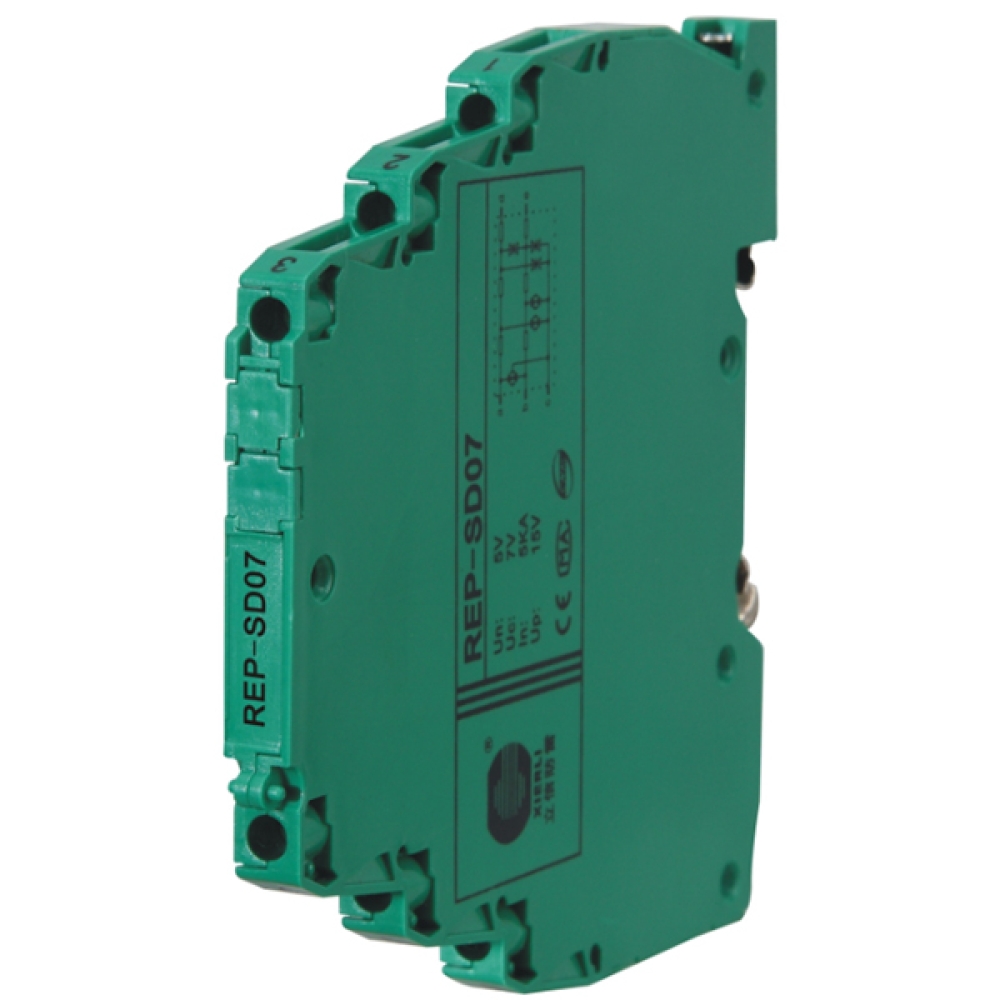

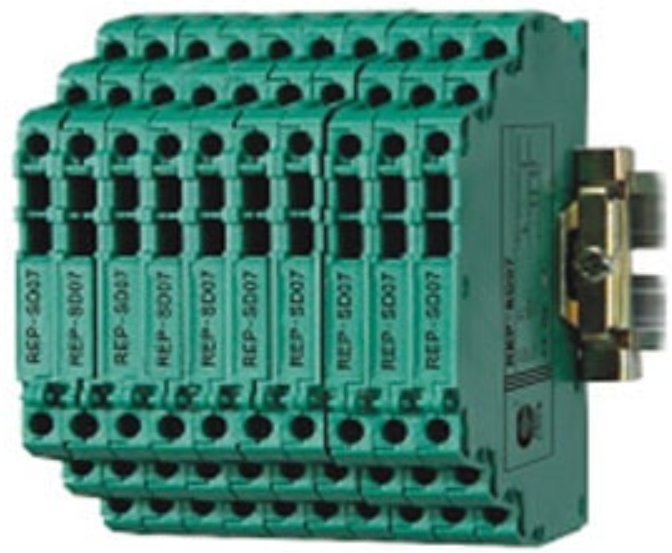

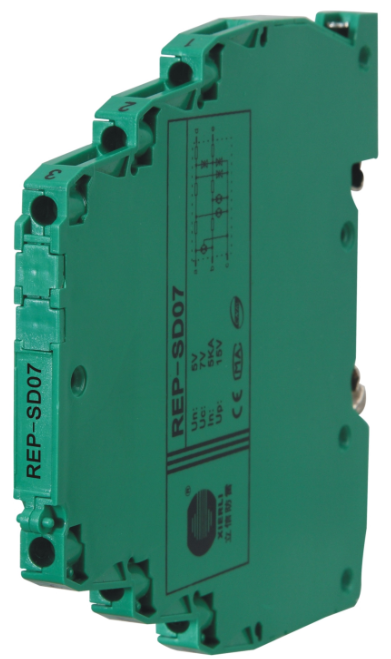

REP-SD 07
