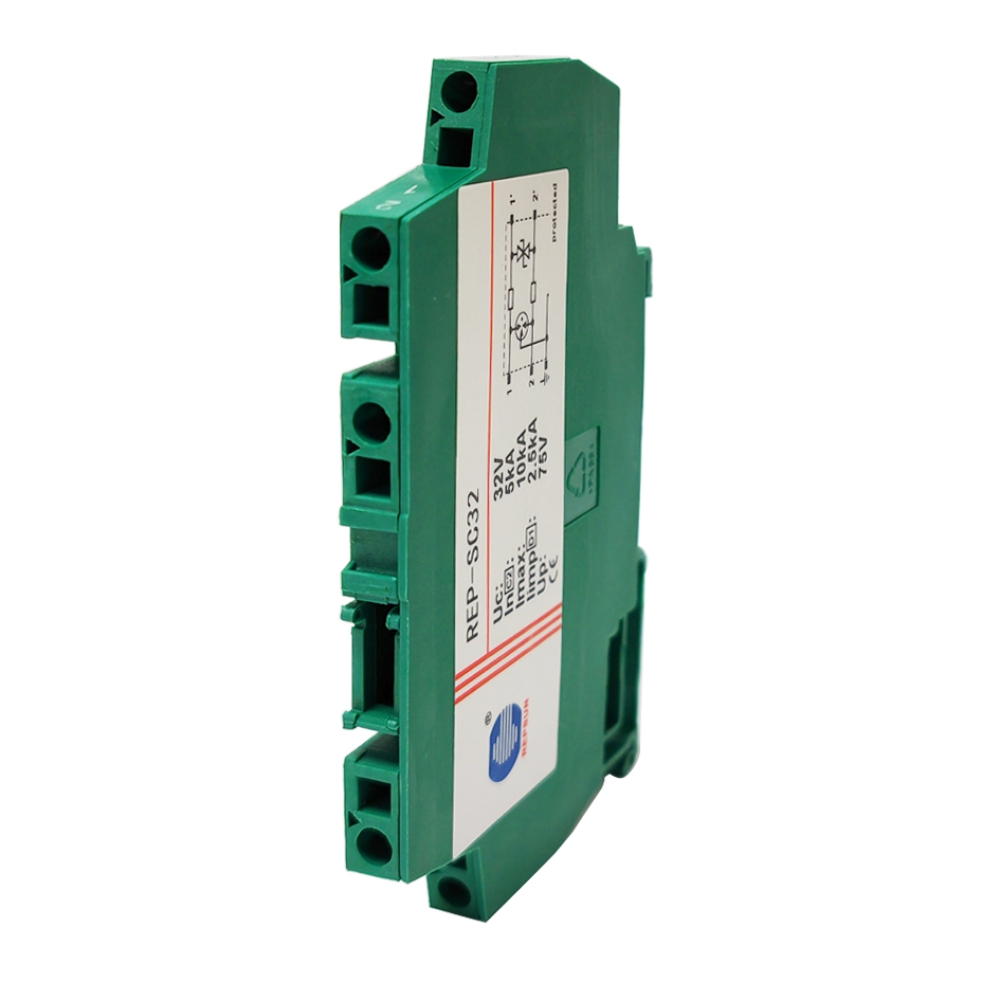

REP-SC32

Name: REP-SC32
SKU: 436
Rating: 5 (1435 reviews)

PRODUCT DETAILS

Features

Compact size with high-performance
Comprehensive protection modes and rapid response time
Enhanced safety, reliability, and all-around protection for a variety of control system
Easy DIN rail mounting with automatic grounding upon installation

Datasheet

Type	REP-SC32
Max.continuous operating d.c.voltage(Uc)	32V
Rated current	0.5A
Max.discharge current	10KA
Nominal discharge current	5KA
Voltage protection level (InC2)(X-X) Up	≤110V
Voltage protection level (InC2)(X-PE) Up	≤65V
Voltage protection level (1KV/C3μs)(X-X) Up	≤90V
Voltage protection level (1KV/C3μs)(X-PE) Up	≤45V
Series impedance	1.8Ω
Response time	10MHz
Inter-line capacitance	≤0.5nF
Line-to-ground capacitance	≤1nF
Protection mode	Balanced/Unbalanced(Selectable)
Grounding method	Direct Grounding/Indirect Grounding(Selectable)
Operating temperature range	-40℃~+80℃
Degree of protection	IP20
Installation rail	35mm DIN rail
Connection method	Screw Terminal
Connection conductors	0.08~0.25mm²
Enclosure material	Thermoplastic 66
Test standards	IEC 61643-21 GB18802
