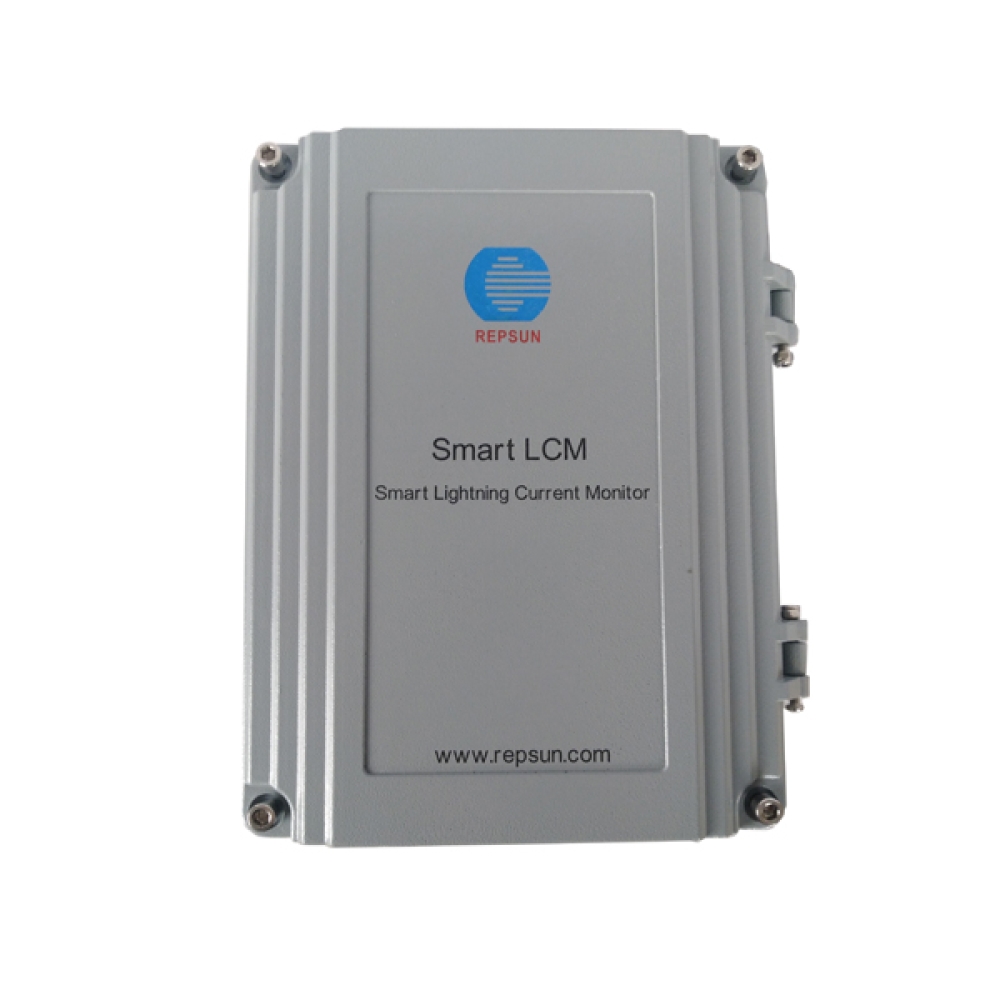

Smart Lightning Current Monitor-Smart LCM

Name: Smart Lightning Current Monitor-Smart LCM
SKU: 411
Rating: 5 (1410 reviews)

PRODUCT DETAILS

Features

REPSUN Smart LCM for continuous monitoring lightning intensity and lightning time that might encounter based on Rogowski coil sensor and IoT (internet of things) technology in real time.
Lightning waveform restoration technology (approximate), all data can be recorded and reviewed at site and on REPSUN web platform.

Sensor Functions & Work Principle

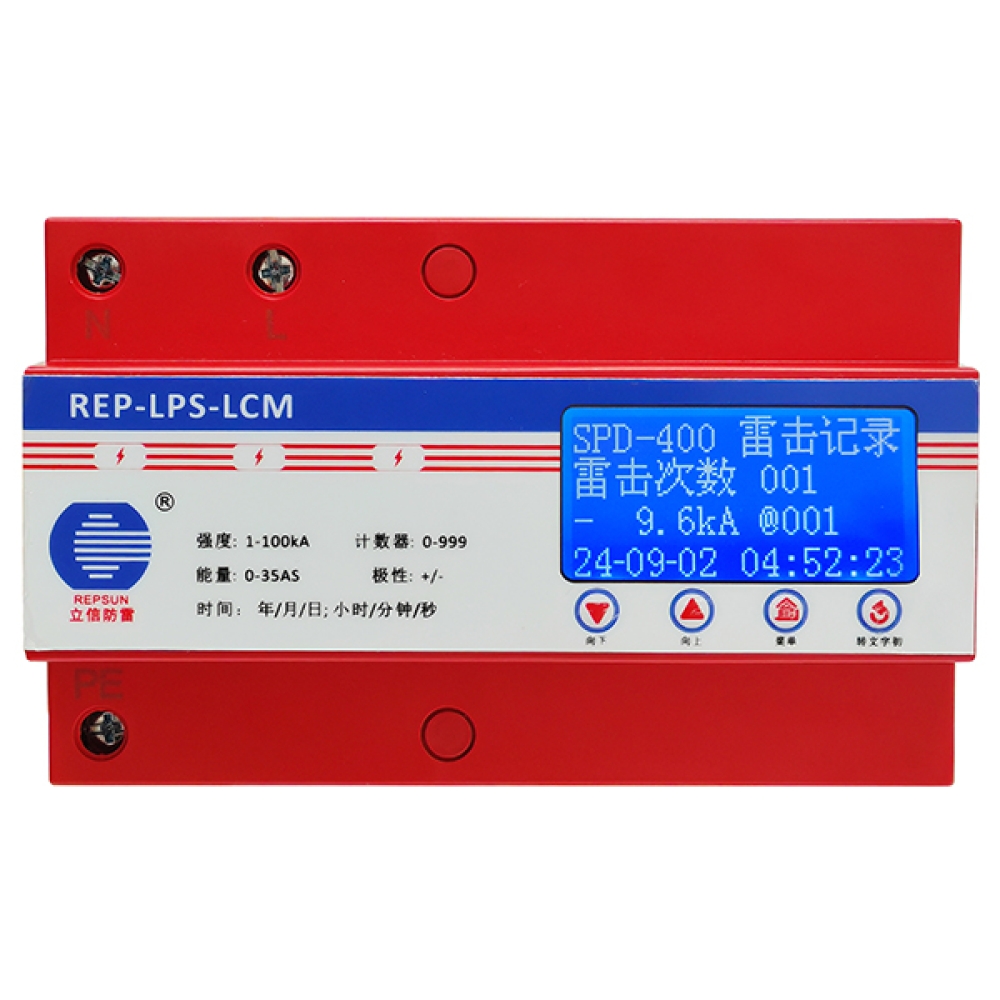

Model	REP-LPS-LCM
Power network system	220V/380V
Remote alarm monitoring	Normal/Failure
Lightning current monitoring	One channel
Lightning intensity(8/20μs)	0.1kA-100kA precision: ±10%
Lightning polarity	+/-
Lightning energy	0~35AS
Lightning counter	1-999
Lightning time	Year/Month/Day , Hour/minute/second
Communication Mode	RS485 serial communication/ DTU/ Modbus RTU protocol
Display module	153×26mm Dot-matrix LCD display (with backlight)
Operating temperature	-20℃~+60℃
Humidity	10%~90%(40℃)
Input power	AC220V or DC24V
Power consumption	<5W
Installation type	Wall-mounted,bench-mounted, Din Rail mounted
