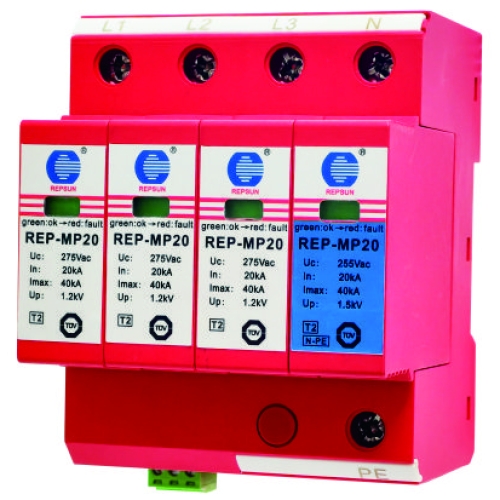

（T2 Surge Protector）REP-MP20 Series

PRODUCT DETAILS

Features

● Remote alarm terminal optional.

Datasheet

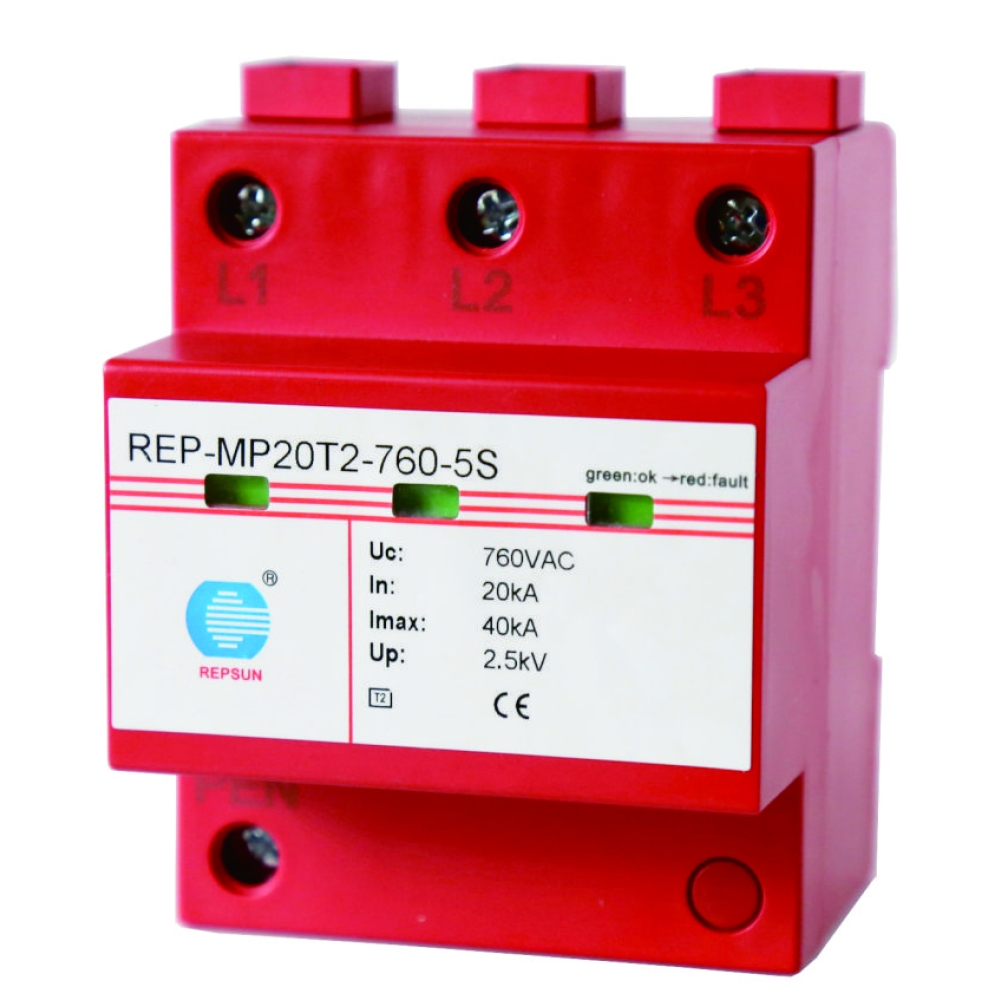

Model	REP-MP20T2-760-5S
The SPD according to IEC 61643-1/-11	Type 2
Nominal AC voltage(Un)	690Vac
Maximum continuous operating voltage(Uc)	760Vac
Nominal discharge current (8/20μs)(In)	20kA
Maximum discharge current (8/20μs)(Imax)	40kA
Voltage protection level(Up)@20kA(8/20μs)	≤5kV
Voltage protection level(Up)@5kA(8/20μs)	≤2.5kV
Response time	≤25ns
Backup fuse	315AgL/gG
Temporary overvoltage(TOV) (UT)	900V / 5sec
Temporary overvoltage(TOV) (UT) Characteristic	Withstand
Remote alarm contact	Remote alarm contact optional
Remote alarm contact capability (Un/In)	AC:250/0.5A DC:250V/0.1A;75V/0.5A
Remote alarm contact connecting wire	Max.1.5mm² or#16AWG
Remote communication contact type	Float switch contact
Ac switching capacity	250V/0.1A
Operating temperature range	-40℃~+80℃
Work/Fault indicator	Green: Normal ; Red: Failure
The minimum cross-sectional area of installation	4 mm² solid/flexible
The maximum cross-sectional area of installation	25 mm² flexible
Installation	35mm DINrail,according to EN 60715
Enclosure material	Red thermoplastic material ,UL 94v-0
The installation location	Indoor
Degree of protection	IP20

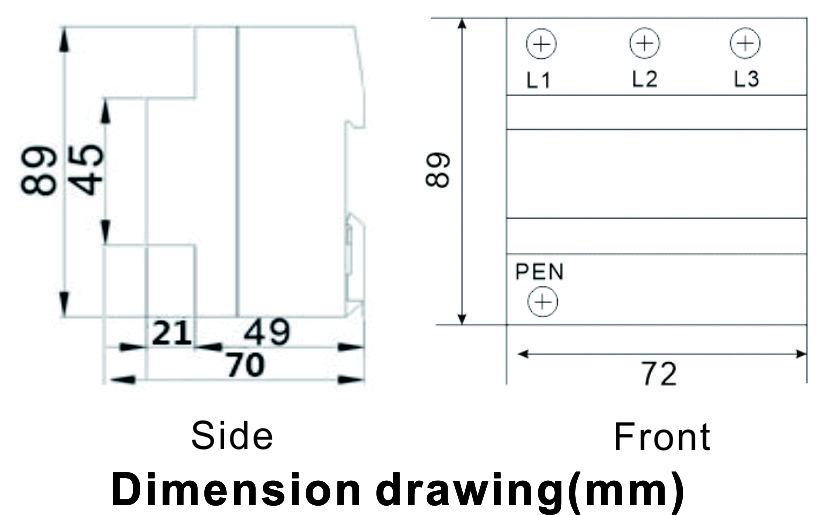

Size	4 modules
