Power Surge Protector (Class C / Type2)

PRODUCT DETAILS

Features

  • Type2 surge protector comply with IEC61643-11.
  • Low voltage protection level.
  • Reliable supervision due to double integrated disconnection devices.
  • Optional to use without a fuse.
  • Remote alarm terminal optional.

Datasheet

Model REP-MP40
 REP-MP60
 REP-MP40NPE
 REP-MP60NPE
The SPD according to IEC61643:11
 II/T2
 II/T2
 II/T2
 II/T2
Nominal AC voltage (Un)
 230/400VAC
 230/400VAC
 230/400VAC
 230/400VAC
Maximum continuous voltage (Uc)
 385VAC
 385VAC
 385VAC
 385VAC
Nominal discharge current (8/20μs)In
 40kA
 60kA
 40kA
 60kA
Maximum discharge current (8/20μs)Imax
 80kA
 120kA
 80kA
 120kA
Voltage protection level (Up)
 1.8kV
 1.8kV
 2.0kV
 2.5kV
Response time
 25ns
 25ns
 100ns
 100ns
Operating temperature range
 -40℃~+80℃
The minimum cross-sectional area of installation
 1.5mm² solid/flexible
The maximum cross-sectional area of installation
 25mm² solid/flexible
Remote alarm contact
 Remote alarm contact optional
Degree of protection
 IP20
Failure indication
 Green: Normal ; Red: Failure
Enclosure material
 Flame retardant material UL94-V0








SEND INQUIRY
Power Surge Protector (Class C / Type2)
Power Surge Protector (Class C / Type2)
GENERAL LOOK

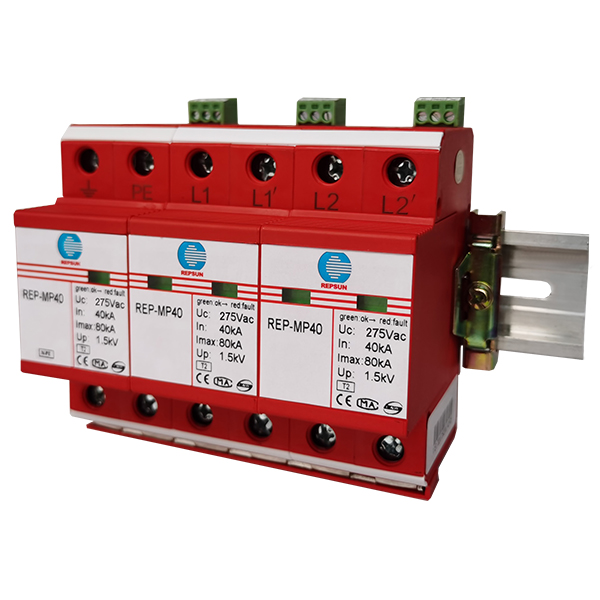

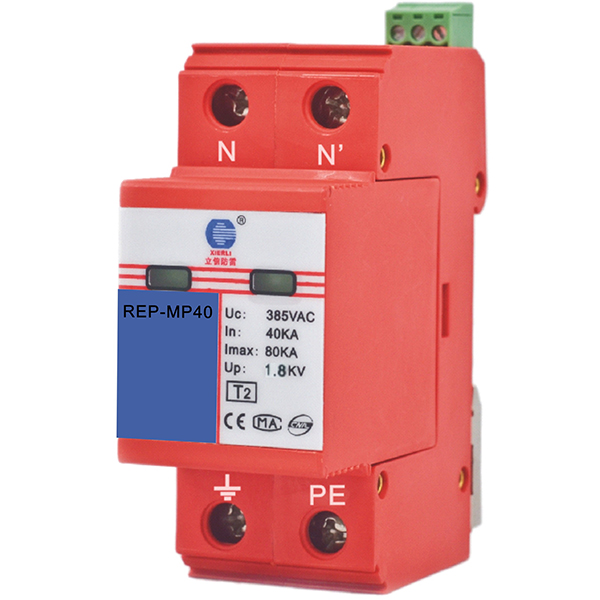

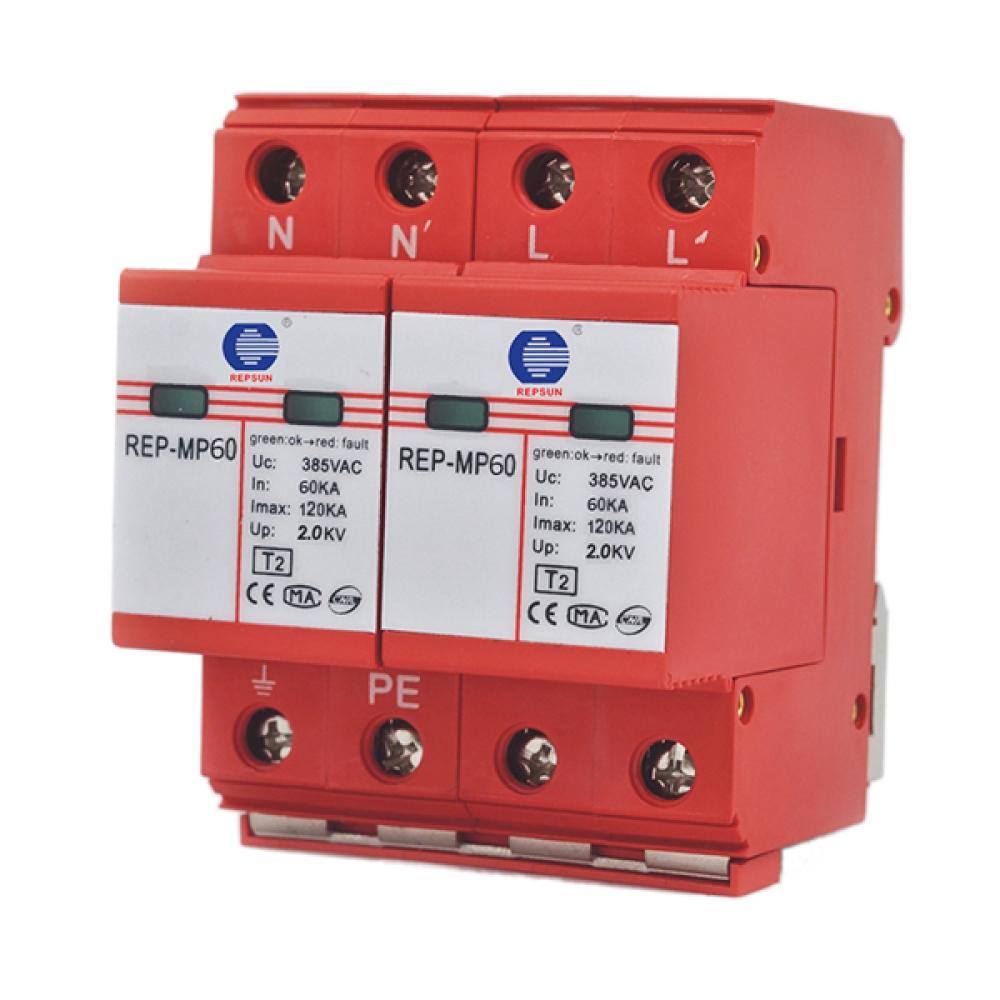

            36mm(2P) (L-N/PE) (N-PE)                                72mm(4P) (1+1) (2+0)                                                 108mm(6P) (3+0)

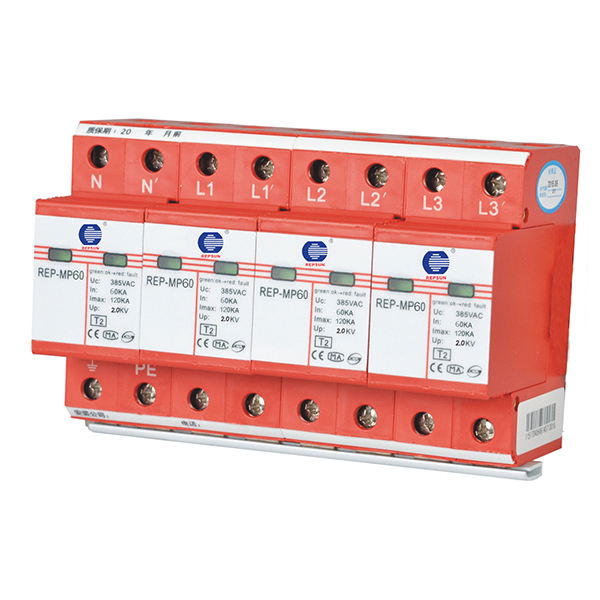

                144mm(8P)  (3+1) (4+0)














SPDType2 Surge ProtectorSurge Protective DeviceT2 SpdType2 SpdAc SpdAc Surge Protective Device
