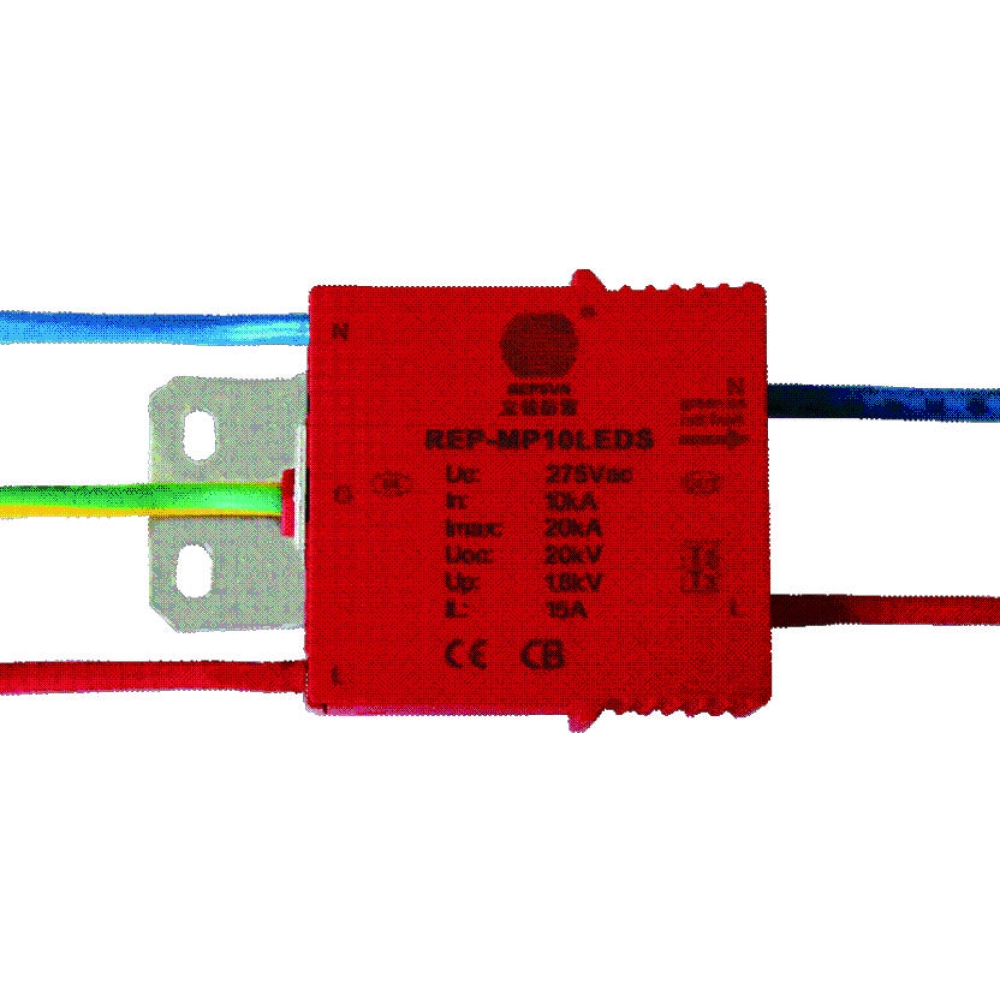

（SPD for LED Street Lighting）REP-MP10LEDP&REP-MP10LEDS Series

PRODUCT DETAILS

Features

Type	REP-MP10LEDP	REP-MP10LEDS
The SPD according to IEC/EN 61643	III/T3
Nominal AC voltage(Un)	230 Vac single phase
Maximum continuous operating voltage(Uc)	275Vac
Nominal discharge current(8/20μs)(In)	10kA
Maximum discharge current(8/20μs)(Imax)	20kA
Open circuit voltage(1.2/50μs)(Uoc)	20kV
Voltage protection level(Up)	≤1.8kV
Response time	25ns
Operating temperature range	-40℃~+80℃
Remote alarm contact	Remote alarm contact optional
Degree of protection	IP20
Failure indication	Green: Normal ; Red: Failure
Mounting	Connected with copper wires or Din Rail optional
Enclosure material	Thermoplastic; extinguishing degree UL94-V0

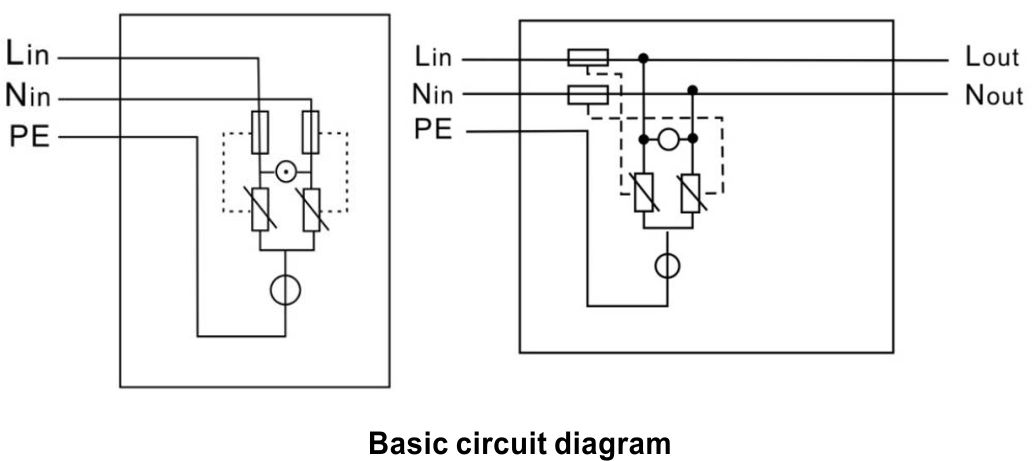

Technical feature	Y circuit design, small size, offering full protection
Installation mode	In parallel	In series
