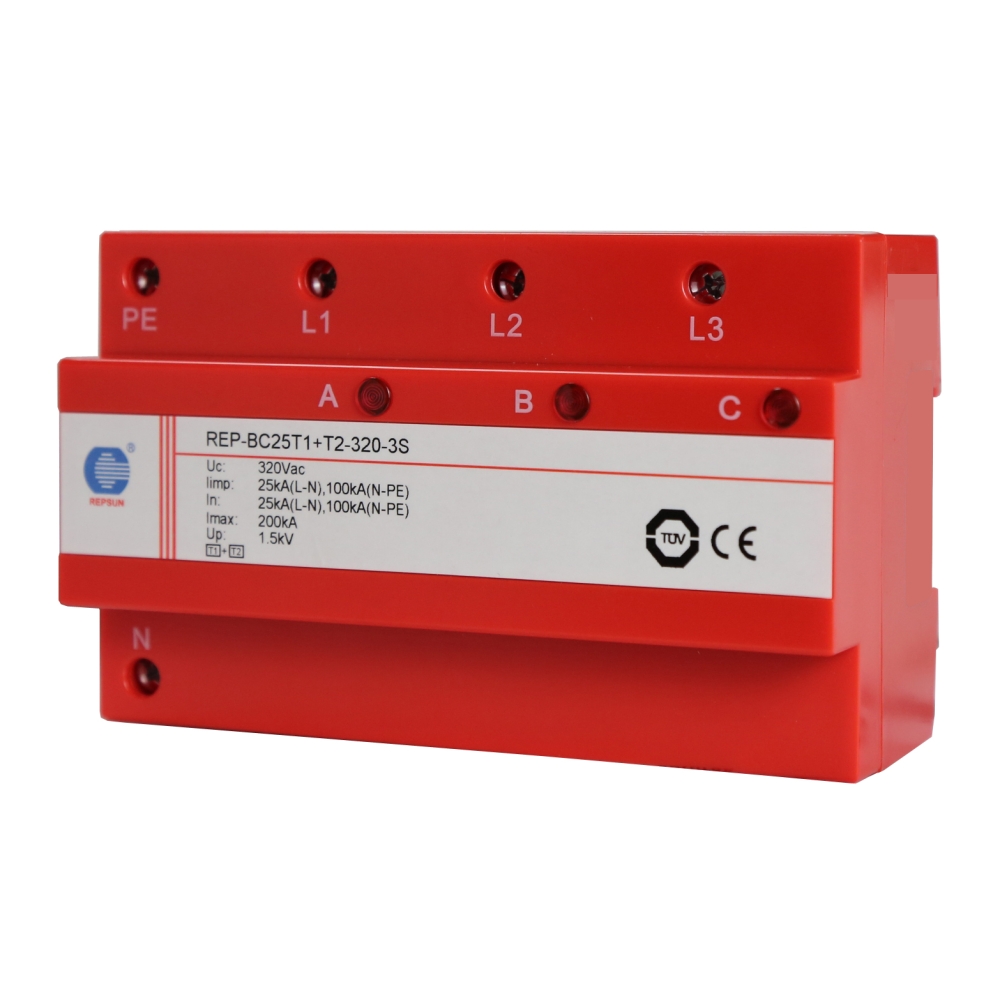

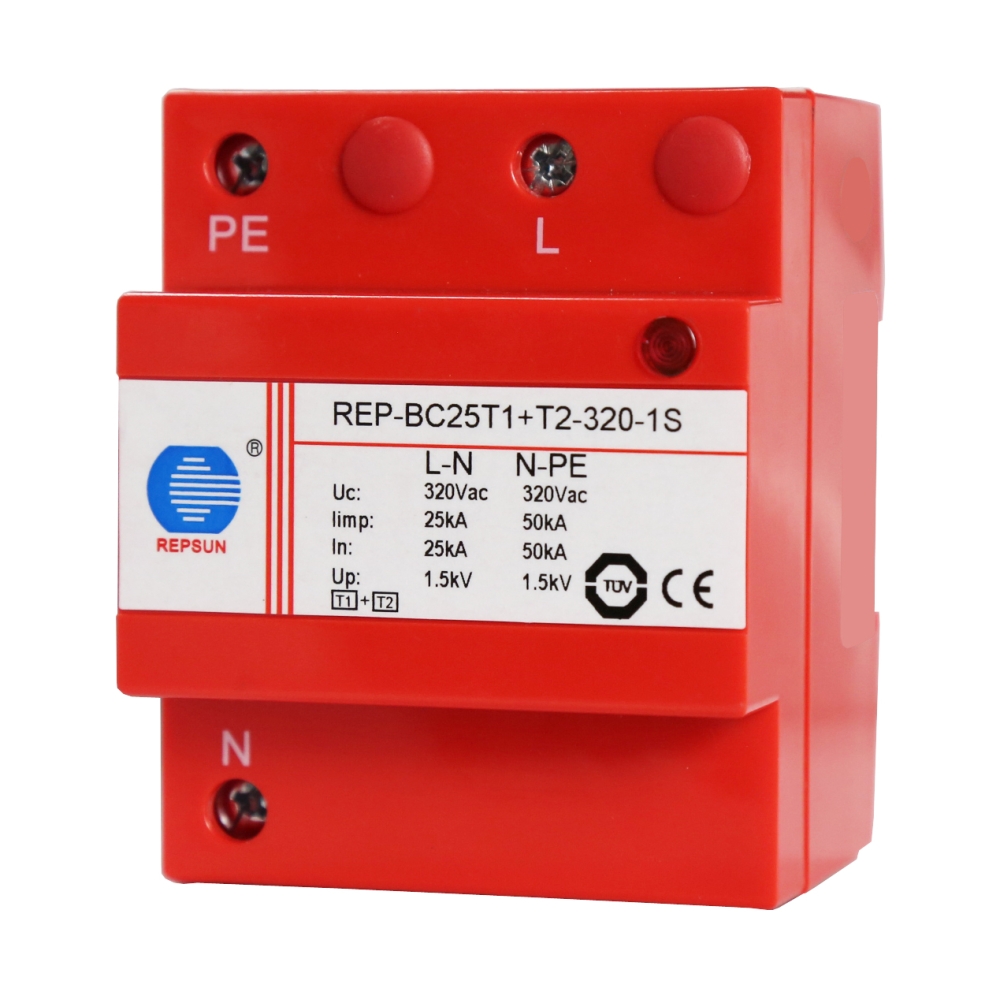

（Combination T1+T2 SPD）REP-BC25 Series

Features

• Type 1+Type 2 combination surge protector SPD.
• Non exhausting encapsulated spark gap technology with extremely high surge capacity.
• High surge discharge capacity and no follow current.
• Fast response time(≤100ns),voltage protection level(Up)≤1.5kV.
• LTR energy control technology, directly coordinated to next Type SPD with zero distance.

Type	REP-BC25T1+T2-320-XS
The SPD according to IEC/EN 61643	I+II/T1+T2
Maximum continuous operating voltage (Uc)	320Vac
Lightning impulse current (10/350μs) (Iimp) [L-N, N-PE]	25kA/100kA
Nominal discharge current (8/20μs) (In) [L-N, N-PE]	25kA/100kA
Maximum discharge current (8/20μs) (Imax) [L-N, N-PE]	100kA/120kA
Voltage protection level (Up)	≤1.5kV
Operating temperature range	-40℃~+80℃
Response time	≤100ns
Failure indication	Light-off: Normal; Light-on: Failure
Remote alarm contact	Remote alarm contact optional
Degree of protection	IP20
Enclosure material	Thermoplastic; extinguishing degree UL94-V0
Technical feature	No exhausting encapsulated spark gap technology
