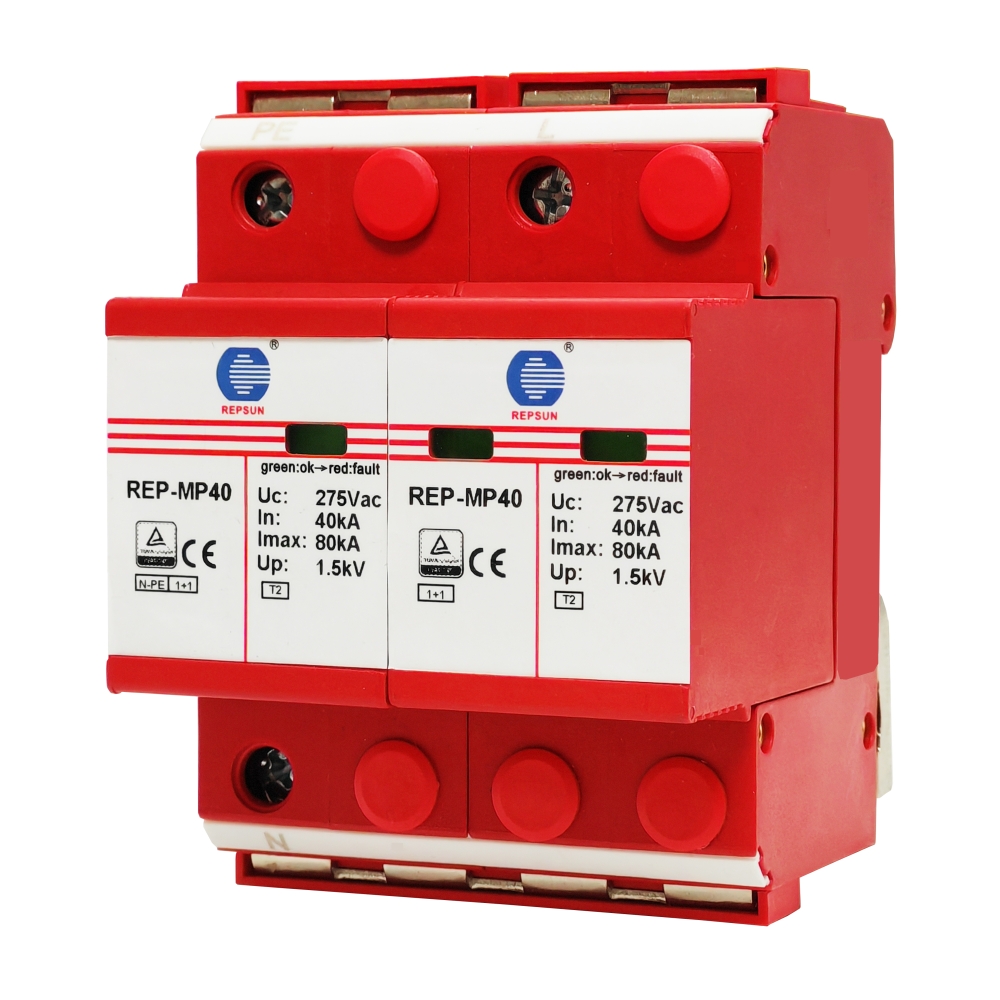

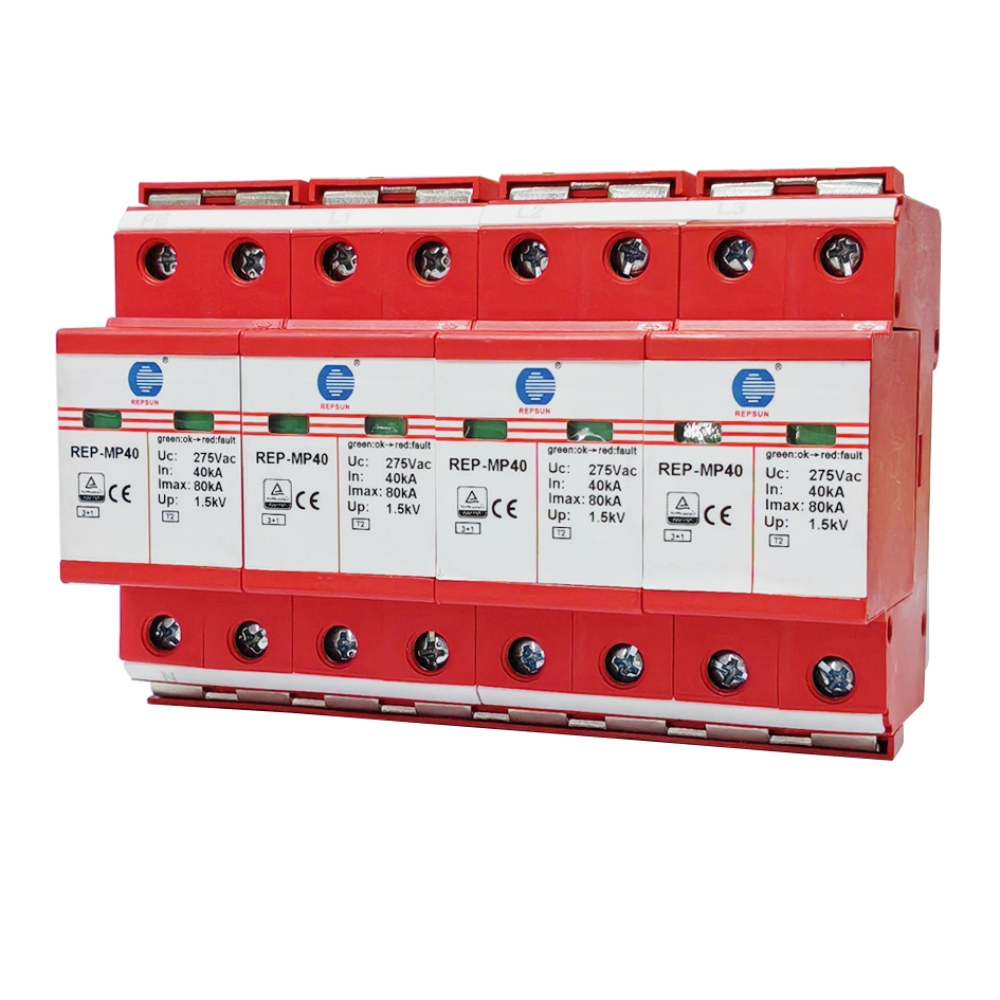

（T2 Surge Protector）REP-MP40 Series

Name: （T2 Surge Protector）REP-MP40 Series
SKU: 449
Rating: 5 (1448 reviews)

PRODUCT DETAILS

Features

● Type2 surge protector SPD.

● Fast response time(≤25ns) , low voltage protection level.

● Reliable safety due to double integrated disconnectors with double protections.

● Optional to use without a back up fuse.

● Failure indication window, remote alarm terminal optional

Datasheet

Parameter	Specification
Type	REP-MP40T2-XXX-XS
The SPD according to IEC/EN 61643	II/T2
Maximum continuous operating voltage(Uc)[L-N]	385Vac	275Vac
Nominal discharge current(8/20μs)(In)	40kA
Maximum discharge current(8/20μs)(Imax)	80kA
Voltage protection level(Up)[L-N]	≤1.8kV	≤1.5kV
Response time	25ns[L-N/PE]/100ns[N-PE]
Operating temperature range	-40℃~+80℃
Remote alarm contact	Remote alarm contact optional
Degree of protection	IP20
Failure indication	Green: Normal ; Red: Failure
Enclosure material	Thermoplastic; extinguishing degree UL94-V0
Technical feature	Double integrated disconnection devices with double protections
