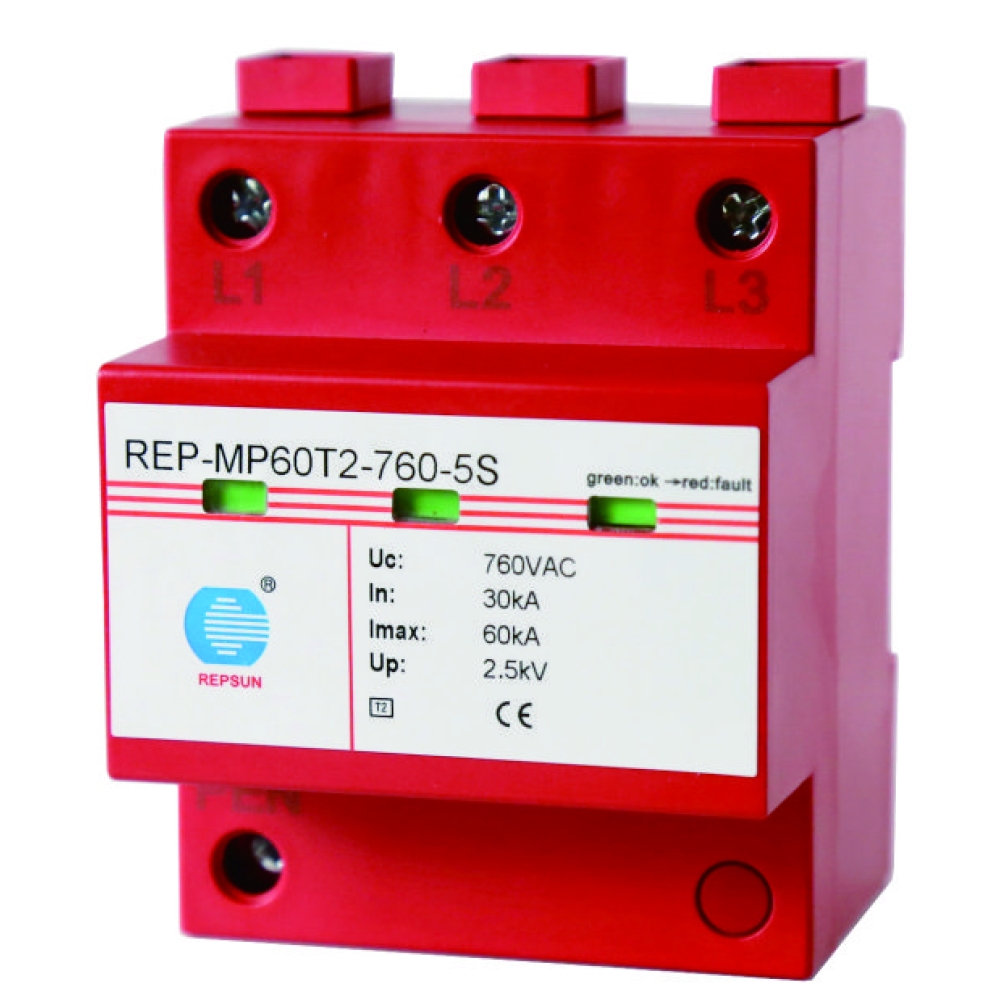

（T2 Surge Protector）REP-MP60 Series

PRODUCT DETAILS

Features

• Type2 surge protector comply with IEC61643-11.
• Reliable supervision due to double integrated disconnection devices.
• Low voltage protection level.
• Optional to use without a fuse.
• Remote alarm terminal optional.

Model	REP-MP60T2-760-5S
The SPD according to IEC 61643-1/-11	Type 2
Nominal AC voltage(Un)	690Vac
Maximum continuous operating voltage(Uc)	760Vac
Nominal discharge current (8/20μs)(In)	30kA
Maximum discharge current (8/20μs)(Imax)	60kA
Voltage protection level(Up)@20kA(8/20μs)	≤5kV
Voltage protection level(Up)@5kA(8/20μs)	≤2.5kV
Response time	≤25ns
Backup fuse	315AgL/gG
Temporary overvoltage(TOV) (UT)	900V / 5sec.
Temporary overvoltage(TOV) (UT) Characteristic	Withstand
Remote alarm contact	Remote alarm contact optional
Remote alarm contact capability (Un/In)	AC:250/0.5A DC:250V/0.1A;75V/0.5A
Remote alarm contact connecting wire	Max. 1.5mm² or #16AWG
Remote communication contact type	Float switch contact
Ac switching capacity	250V/0.1A
Operating temperature range	-40℃~+80℃
Work/Fault indicator	Green: Normal ; Red: Failure
The minimum cross-sectional area of installation	4 mm² solid/flexible
The maximum cross-sectional area of installation	25 mm² solid/flexible
Installation	35mm DINrail,according to EN 60715
Enclosure material	Red thermoplastic material ,UL 94v-0
The installation location	Indoor
Degree of protection	IP20

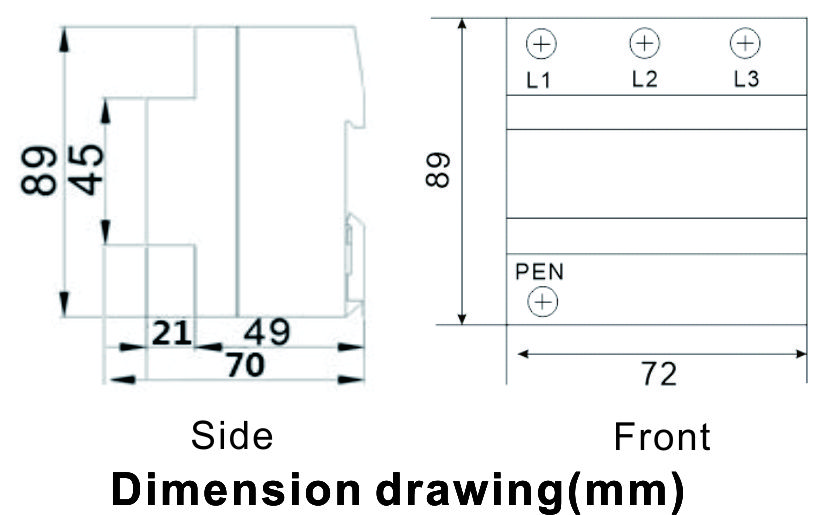

Size	4 modules
