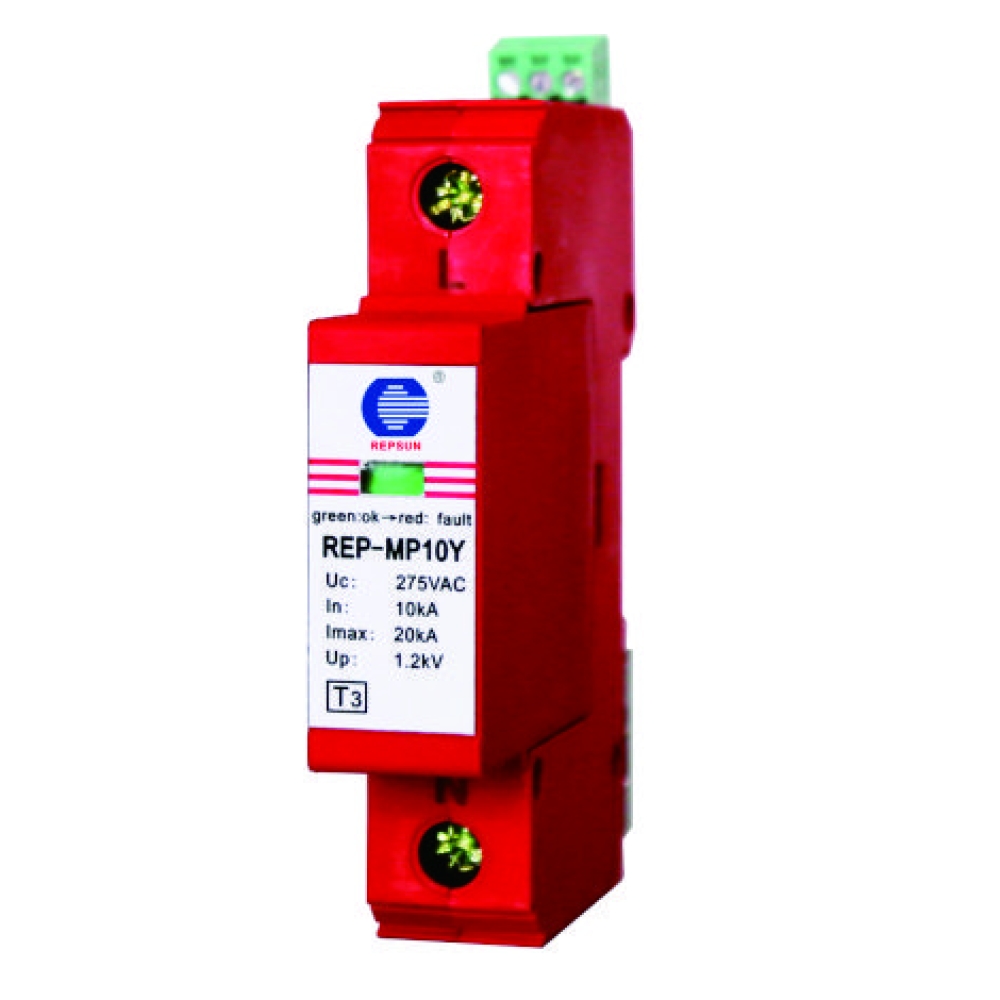

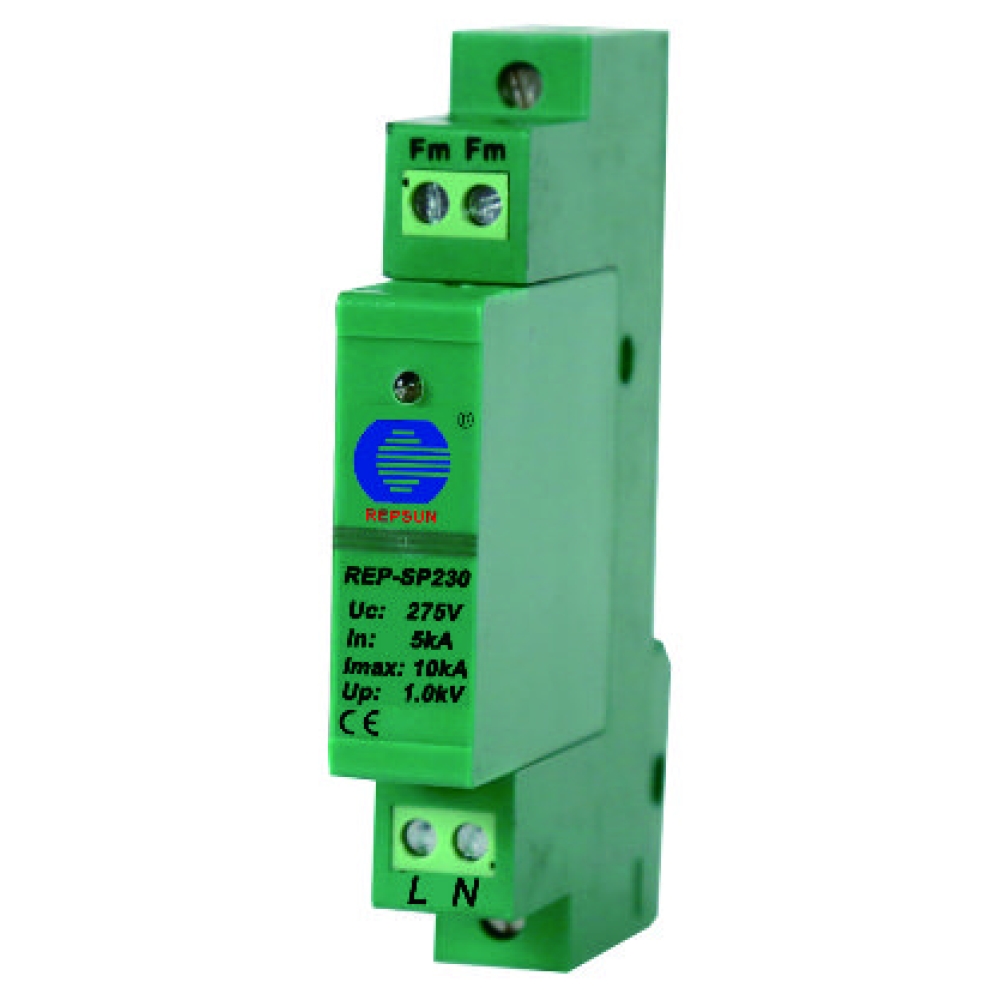

（T3 Surge Protector）REP-MP10&SP230 Series

Name: （T3 Surge Protector）REP-MP10&SP230 Series
SKU: 447
Rating: 5 (1446 reviews)

PRODUCT DETAILS

Features

● Type3 surge protector SPD, fast response time(≤25ns), low voltage protection level.

● Four items optional, already attained CB certificate.

● Y-configuration full modes of protection.

● High discharge capacity in a certain small size.

● Mechanical disconnection indicator or light indicator optional; remote alarm contact optional

Datasheet

Type	REP-MP10T3-275-XS	REP-SP230T3-275-XS
The SPD according to IEC/EN 61643	III/T3	III/T3
Normal AC voltage(Un)	230Vac	230Vac
Maximum continuous operating voltage(Uc)	275Vac	275Vac
Nominal discharge current(8/20μs)(In)10kA	10kA	5kA
Maximum discharge current(8/20μs)(Imax)	20kA	10kA
Voltage protection level(Up)	≤1.2kV	≤1.0kV
Response time	25ns
Operating temperature range	-40℃~+80℃
Remote alarm contact	Remote alarm contact optional
Degree of protection	IP20
Failure indication	Green: Normal ; Red: Failure	Light-off: Normal ; Light-on: Failure
Enclosure material	Thermoplastic; extinguishing degree UL94-V0

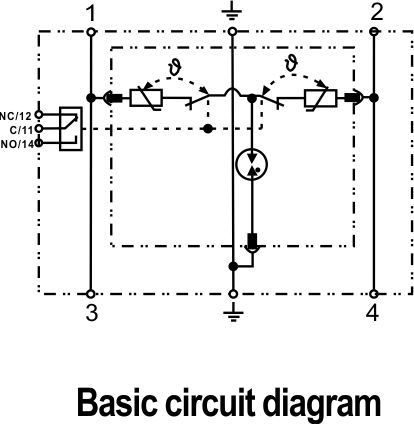

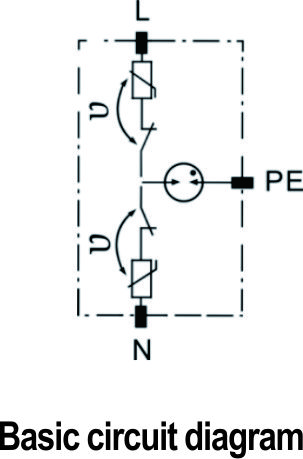

Technical feature	Y circuit, small size, offering full protection
