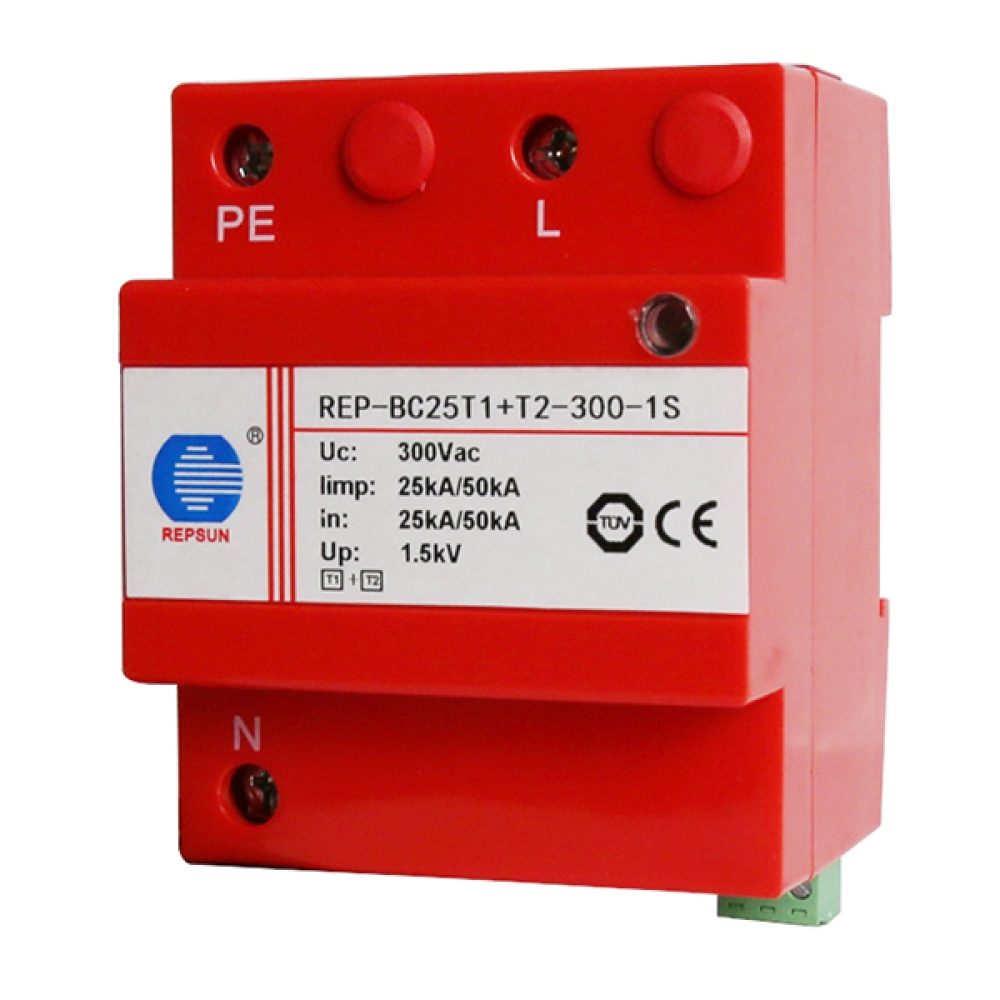

REP-BC25T1+T2-300-1S

PRODUCT DETAILS

Features

• Combination T1+T2 SPD surge protector for single phase;
• Non exhausting encapsulated spark gap technology with extremely high surge capacity;
• High follow current extinction and limitation due to no follow current;
• Reliable supervision due to new LTR energy control technology;
• With remote signaling contact optional and light failure indicator.

Datasheet

Model	REP-BC25T1+T2-300-1S
Compliance	IEC 616643-11:2011 IEC 616643-11:2012
Energy coordination with terminal equipment(≤5m)	T1+T2+T3
Nominal AC voltage(Un)	220/400Vac (50/60Hz)
Maximum continuous Operating voltage(Uc)	300Vac (50/60Hz)
Lightning impulse current(10/350μs) Iimp(L-N/N-PE)	25kA/50kA
Nominal discharge current(8/20μs) In(L-N/N-PE)	25kA/50kA
Maximum discharge current(8/20μs) Imax(L-N/N-PE)	120kA
Response time	≤100ns
Voltage protection level Up@In	<1.5kV
Protection TOV Mode	Safe Fail
Temporary overvoltage (TOV)(L-N)(UT)-Characteristic	≥440V/5sec.-withstand
Temporary overvoltage (TOV)(N-PE)(UT)-Characteristic	≥1200V/200ms-withstand
Additional abnormal voltage test:485Vac/50Hz for 24h	withstand
Remote alarm contact	NC/C
Remote alarm contact capability Un/In	AC:250/0.5A DC:250V/0.1A;75V/0.5A
Remote alarm contact connecting wire	Max.1.5mm² or #16AWG
Operating temperature range	-40℃ to +85℃
Fault indicator	Light-off:Normal ; Light-on:Failure
Cross-sectional area (min.)	1.5mm² solid/flexible
Cross-sectional area (max.)	35mm² flexible
For mounting on	35mm DIN rail
Enclosure material	Red thermoplastic,UL94 V-0
Degree of protection	IP20
Size	4 modules
Dimensions(mm)	Diagram
