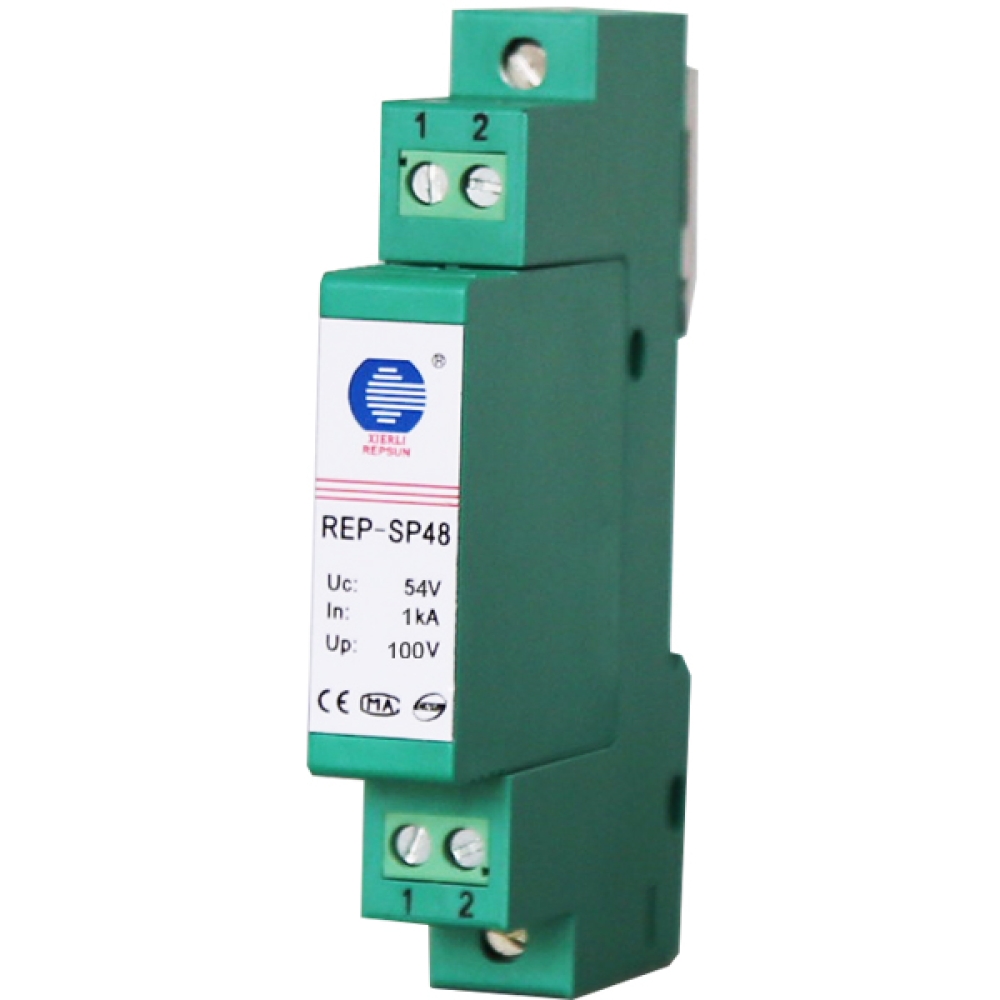

REP-SP48

PRODUCT DETAILS

Features

• REP-SP can work in the various voltage of 5-60Vdc.
• Pluggable surge protection for DIN rail easy mounting.
• Signal transmission is not interrupted when exchanging module.
• Two-stage protection circuit; suitable to use RS232 or RS485 surge protection.
• Low insertion impedance without affecting signal transmission.
• LED light failure indication, and with remote control contact.

Type	REP - SP48
Nominal Operating voltage(Uc)	48V
Max. continuous operating d.c. voltage(Uc)	54V
Load current insertion	2000mA
Nominal discharge current(8/20μs)(In)	1kA
Max discharge current(8/20μs)(Imax)	2kA
Voltage protection level(Up@In)(L - L)	≤100V
Voltage protection level(Up@In)(L - PE)	1.2kV
Insertion resistance	<0.2Ω
Installation rail	35mm DIN60715
Operating temperature range	-40°C ~ +85°C
Degree of protection	IP20
Enclosure material	PBT
Test standards	IEC61000 - 4 - 5; IEC61643:21
Online Replacement	Yes
