PRODUCT DETAILS
Features
Simple installation.
Datasheet
|
Type |

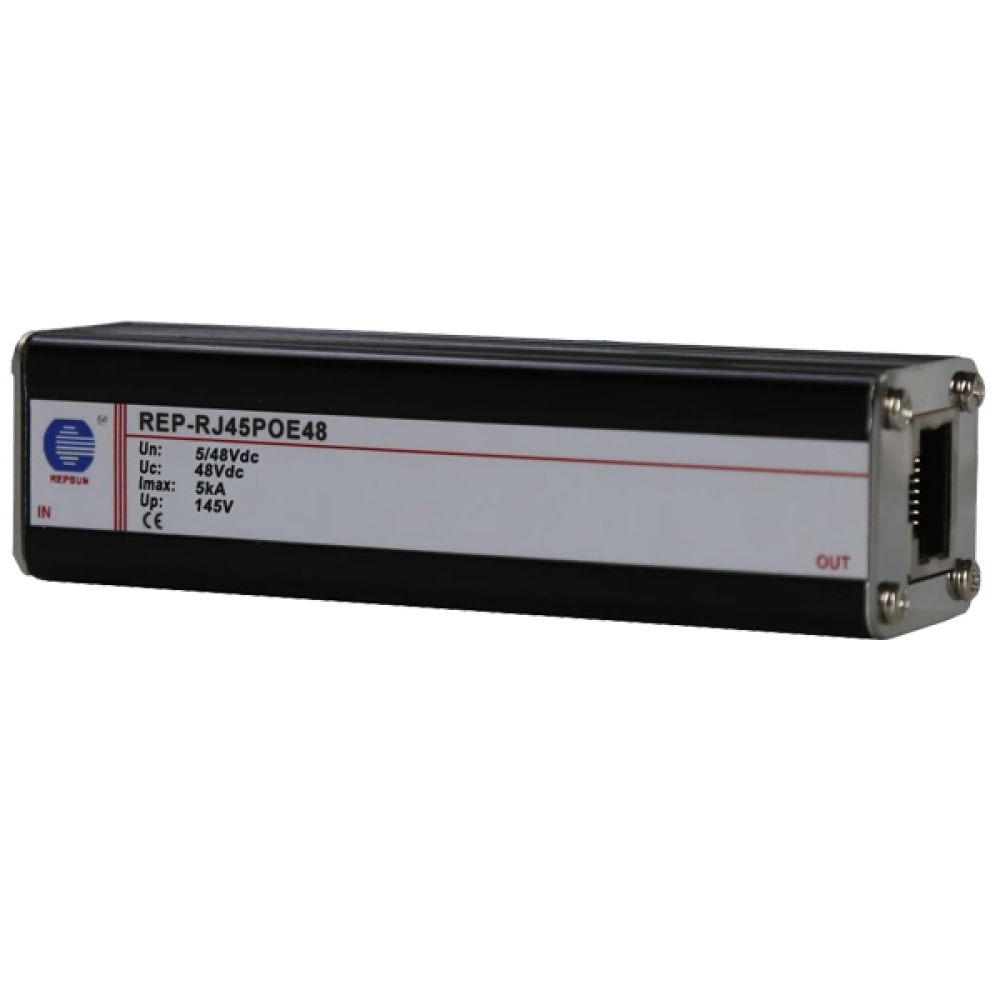

REP-RJ45POE48 |
|
Standard |
IEC 61643-21:2005 EN50173 |
|
Nominal operating voltage (Un) |
5V/48V |
|
Max. continuous operating d. c. voltage (Uc) |
48V |
|
Max. discharge current (8/20μs) (In) |
2.5kA |
|
Max. discharge current (8/20μs) (Imax) |
5kA |
| Voltage protection level @C2 (8/20μs)(Up) |
190V |
| Voltage protection level @C3 (8/20μs)(Up) |
145V |
|
Nominal Current(A)(IL) |
200mA |
|
Transmission Speed(bps) |
1000Mbps |
|
Data Rate |
Connection Rate/Protocol：1000 Base/POE |
|
Pinning |
1/2/3/6/4/5/7/8 |
|
Connection Rate/Protocol |
1MHz - 100 MHZ |
|
Impulse Voltage |
>15kV |
|
Insulation Resistance |
>500MΩ |
|
Near End Crosstalk(NEXT) |
>30.1 dB |
|
Dimensions (mm) |
Diagram |
 |
 |
