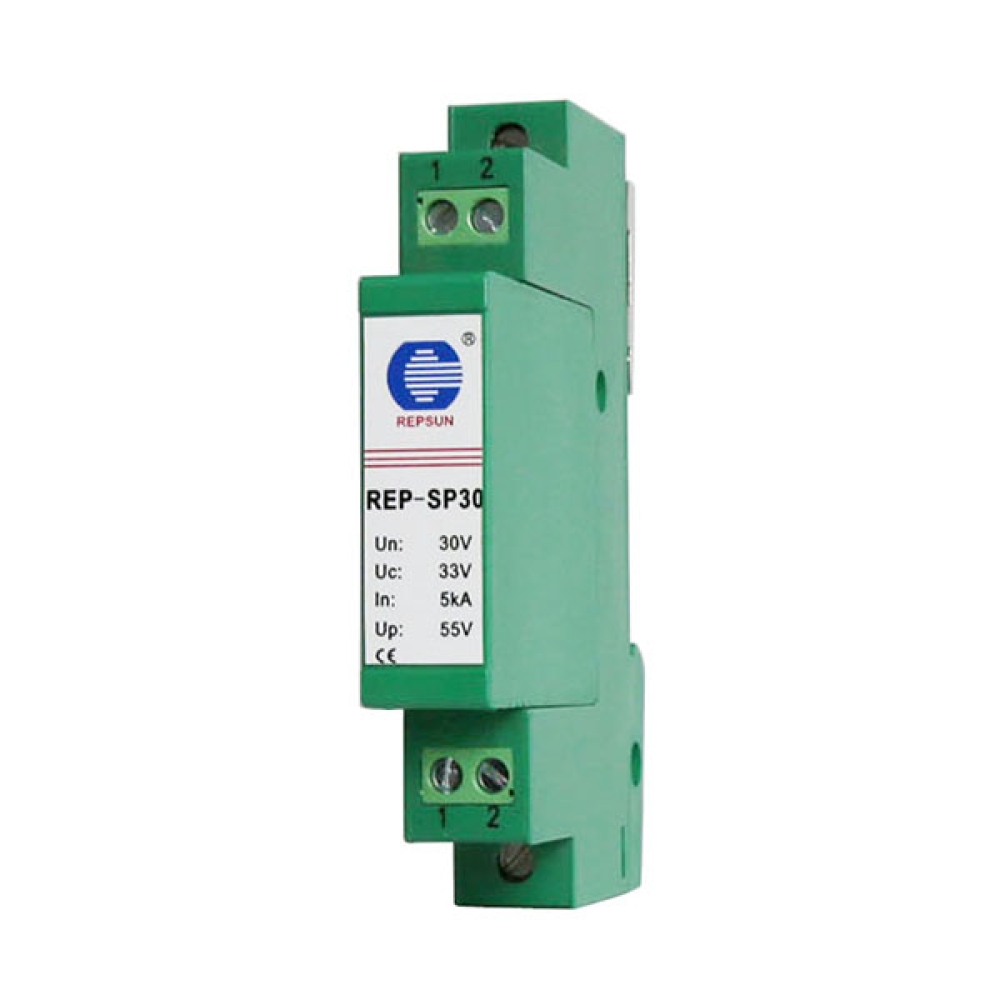

REP-SP30

PRODUCT DETAILS

Features

• REP-SP can work in the various voltage of 5-60Vdc.
• Pluggable surge protection for DIN rail easy mounting.
• Signal transmission is not interrupted when exchanging module.
• Two-stage protection circuit; suitable to use RS232 or RS485 surge protection.
• Low insertion impedance without affecting signal transmission.
• LED light failure indication, and with remote control contact.

Datasheet

Type	REP-SP30
Nominal d.c. voltage(Uc)	30V
Max. continuous operating d.c. voltage(Uc)	33V
Load current insertion	2000mA
Nominal discharge current (8/20µs)(In)	5kA
Max discharge current (8/20µs)(Imax)	20kA
Voltage protection level (Up@In)[L-L]	≤55V
Voltage protection level (Up@In)[L-PE]	≤600V
Insertion resistance	<0.2Ω
Installation rail	35mm DIN60715
Operating temperature range	-40 °C ~ +85 °C
Respons Time	<25ns
Insulation Resistance	≥33MΩ
Cut off Frequency	30MHz
Degree of protection	IP20
Enclosure material	PBT
Test standards	IEC61000-4-5; IEC61643:21
Online Replacement	Yes
