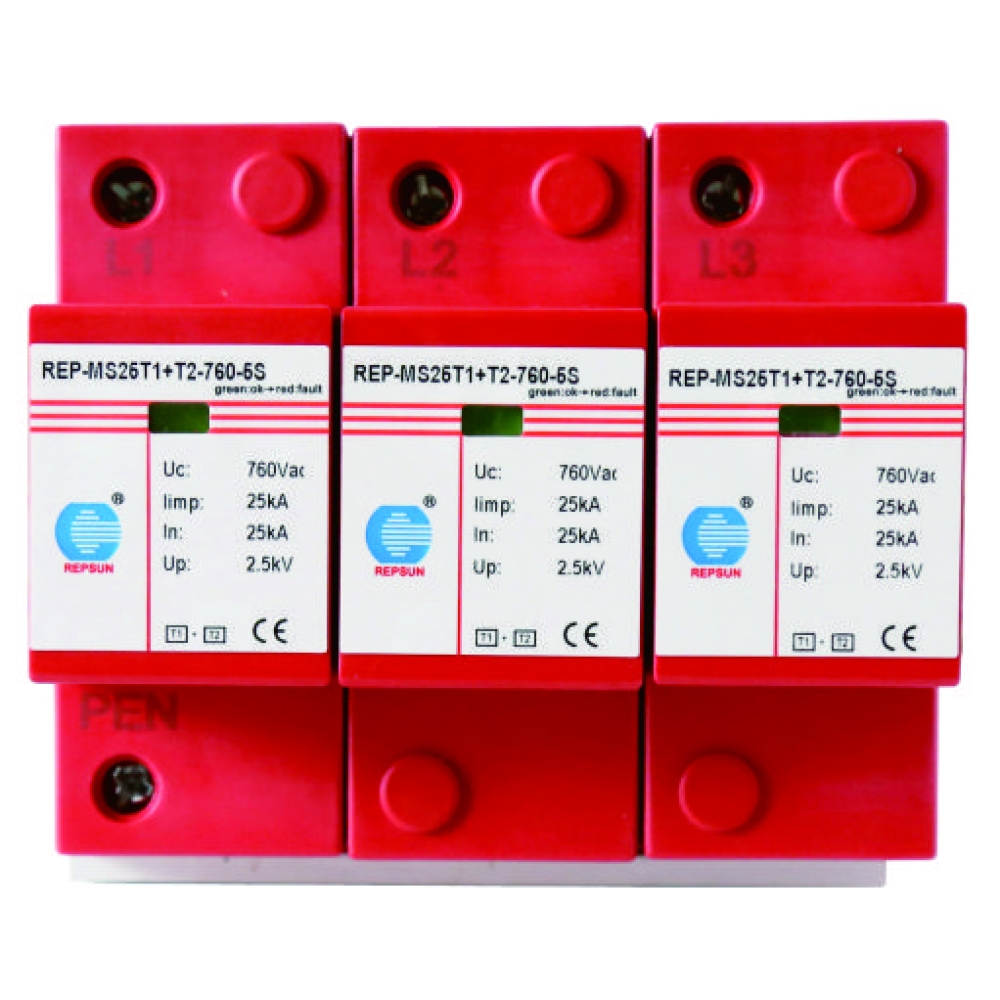

（T1+T2 SPD）REP-MS25 Series

Name: （T1+T2 SPD）REP-MS25 Series
SKU: 456
Rating: 5 (1455 reviews)

PRODUCT DETAILS

Features

● Small combination T1+T2 SPD surge protector.

● Non exhausting encapsulated spark gap technology.

● High follow current extinction and limitation due to no follow current.

● Reliable supervision due to new LTR energy control technology.

● With remote signaling contact optional and mechanical failure indicator.

Datasheet

Model	REP-MS25T1+T2-760-5S
The SPD according to IEC 61643-1/-11	Type 1+Type 2
Nominal AC voltage(Un)	690Vac
Maximum continuous operating voltage(Uc)	760Vac
Nominal discharge current (8/20μs)(In)	25kA
Lightning impulse current(10/350μs) [L-N/N-PE] (limp)	25kA
Total discharge current(10/350μs)[L1+L2+L3-PEN](Itotal)	75kA
Voltage protection level(Up)@10kA(8/20μs)	≤2.5kV
Voltage protection level(Up)@25kA(8/20μs)	≤3.5kV
Response time	≤100ns
Backup fuse	315AgL/gG
Temporary overvoltage(TOV)[L-PEN](UT)	440V / 120min.
Follow current extinguishing capability a.c.[L-N/N-PE](Ifi)	25kA rms
Remote alarm contact	Remote alarm contact optional
Remote alarm contact capability (Un/In)	AC:250/0.5A DC:250V/0.1A;75V/0.5A
Remote alarm contact connecting wire	Max.1.5mm² or#16AWG
Remote communication contact type	Float switch contact
Ac switching capacity	250V/0.1A
Operating temperature range	-40℃~+80℃
Work/Fault indicator	Green: Normal ; Red: Failure
The minimum cross-sectional area of installation	4 mm² solid/flexible
The maximum cross-sectional area of installation	25 mm² flexible
Installation	35mm DINrail,according to EN 60715
Enclosure material	Red thermoplastic material ,UL 94v-0
Degree of protection	IP20

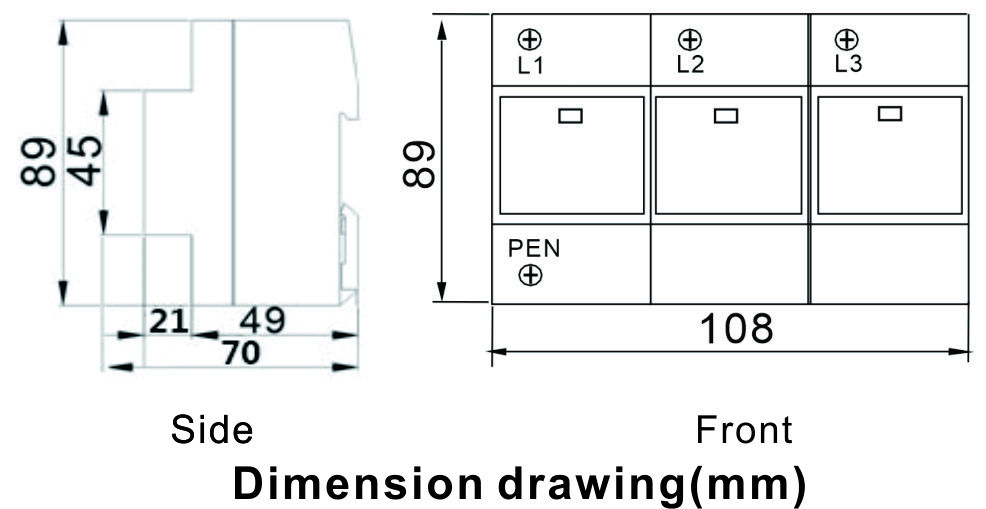

Size	6 modules
