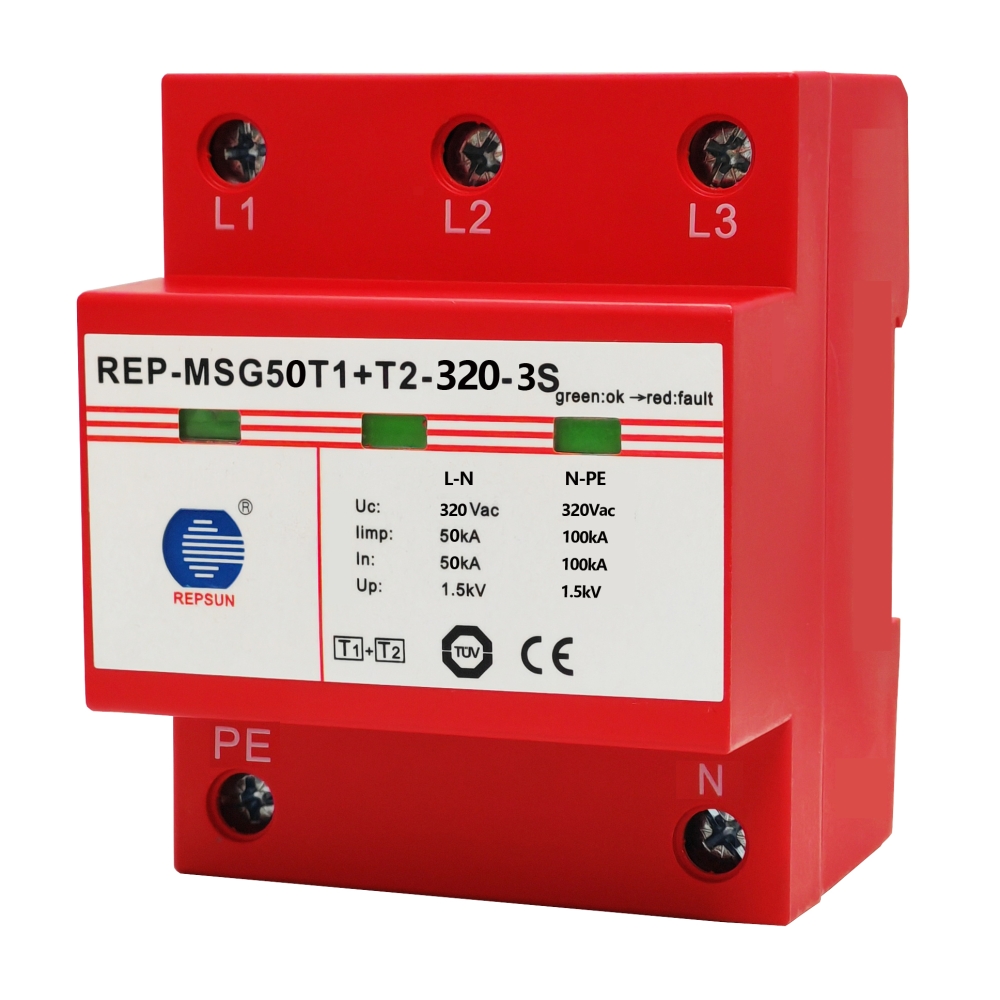

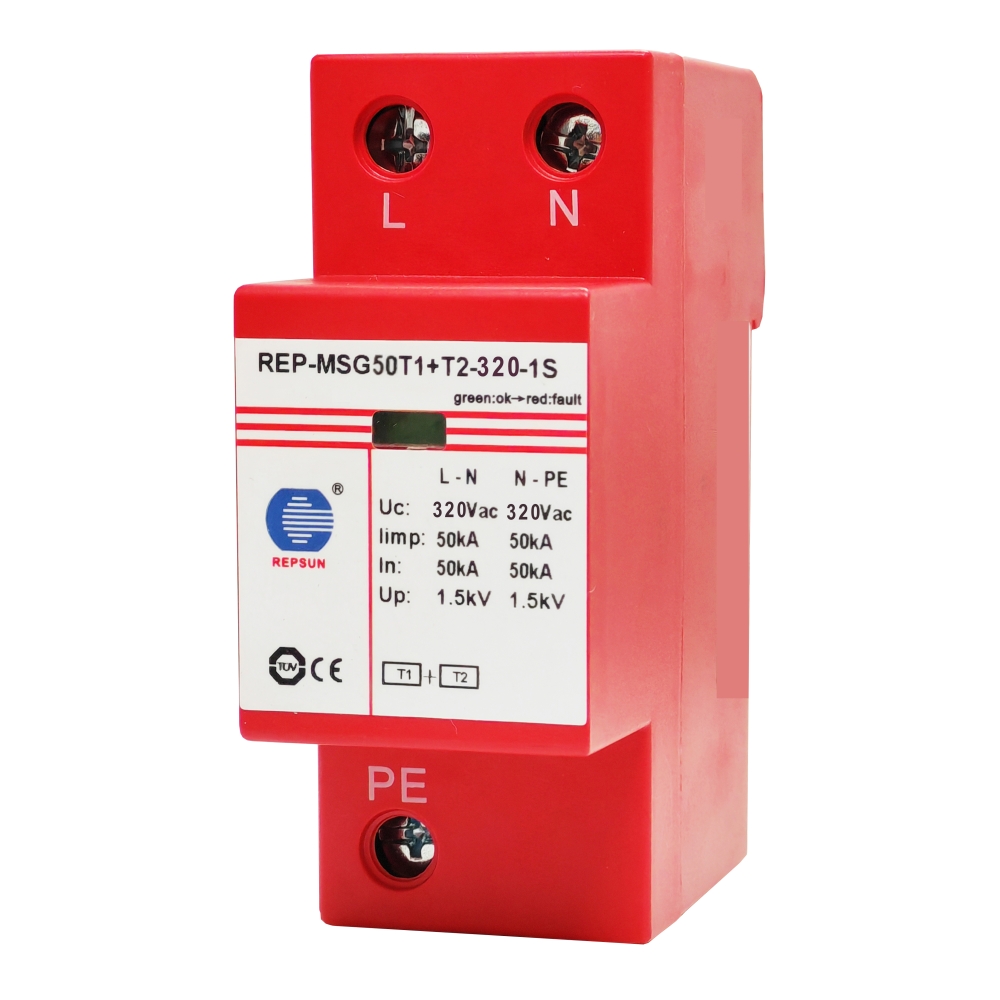

（Combination T1+T2 SPD）REP-MSG50 Series

Name: （Combination T1+T2 SPD）REP-MSG50 Series
SKU: 444
Rating: 5 (1443 reviews)

PRODUCT DETAILS

Features

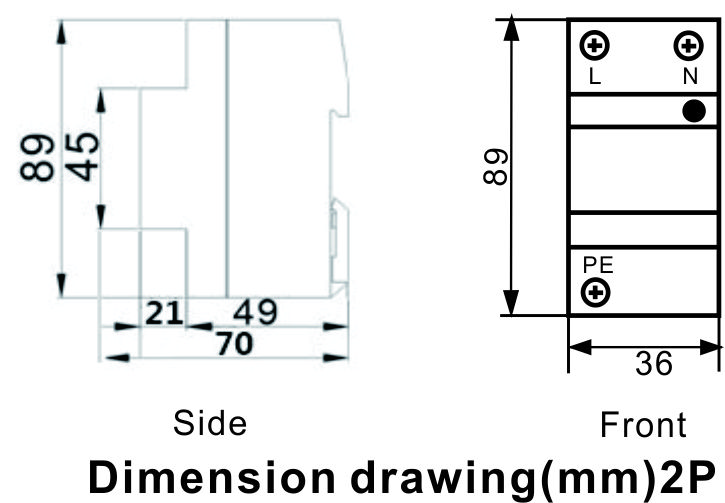

● Smallest size T1+T2 SPD, only 36mm for single phase, 72mm for three phases.

● Non exhausting encapsulated spark gap technology with extremely high surge capacity.

● High surge capacity of 50kA10/350μs per pole, no follow current.

● Voltage protection level(Up)≤1.5kV.

● LTR energy control technology, directly coordinated to next SPD without additional length.

Datasheet

Type	REP-MSG50T1+T2-XXX-XS
The SPD according to IEC/EN 61643	I+II/T1+T2
Energy coordination with terminal equipment (≤5m)	T1+T2+T3
Maximum continuous operating voltage(Uc)	255Vac	320Vac
Lightning impulse current(10/350μs)(Iimp)[L-N,N-PE]	50kA/100kA
Nominal discharge current(8/20μs)(In)[L-N,N-PE]	50kA/100kA
Maximum discharge current(8/20μs)(Imax)[L-N,N-PE]	100kA/160kA
Voltage protection level(Up)	≤1. 5kV
Operating temperature range	-40℃~+80℃
Response time	≤100ns
Failure indication	Green: Normal ; Red: Failure
Remote alarm contact	Remote alarm contact optional
Degree of protection	IP20
Enclosure material	Thermoplastic; extinguishing degree UL94-V0
Technical feature	No exhausting encapsulated spark gap technology
