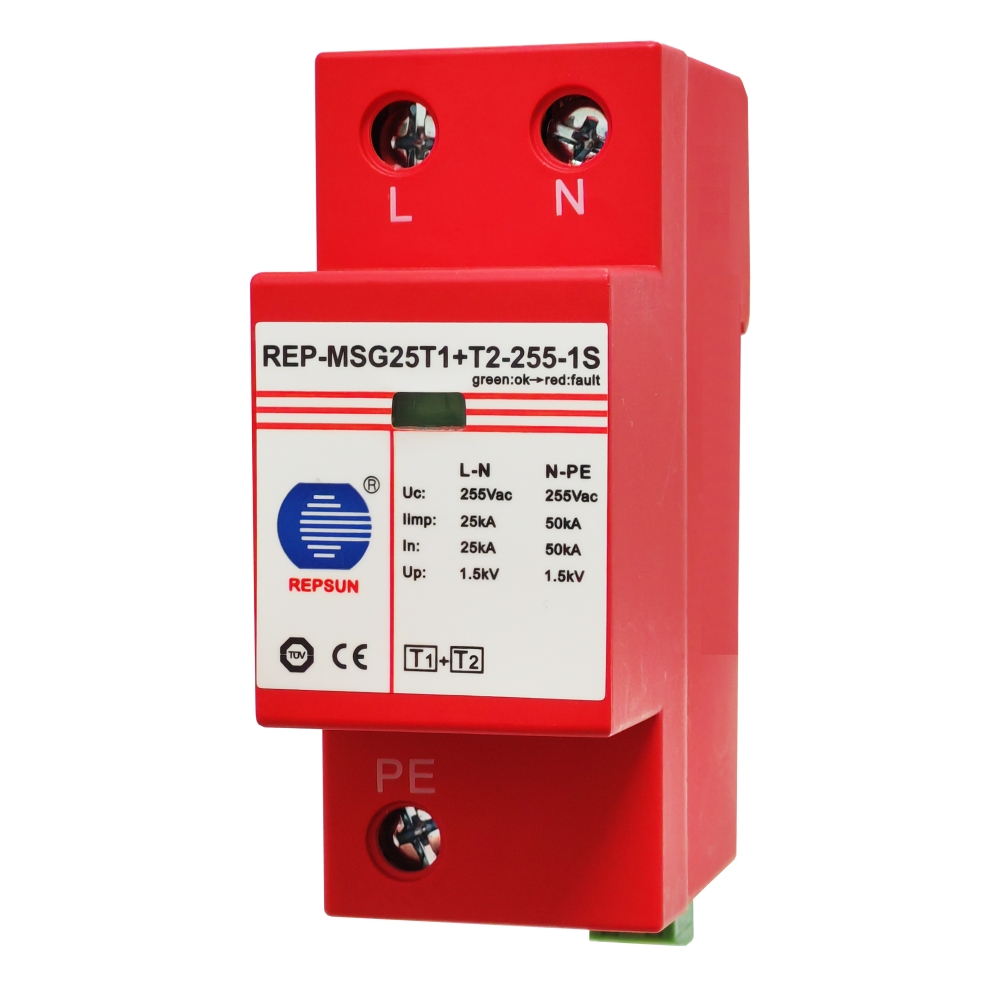

（Combination T1+T2 SPD）REP-MSG25 Series

Name: （Combination T1+T2 SPD）REP-MSG25 Series
SKU: 438
Rating: 5 (1437 reviews)

Features

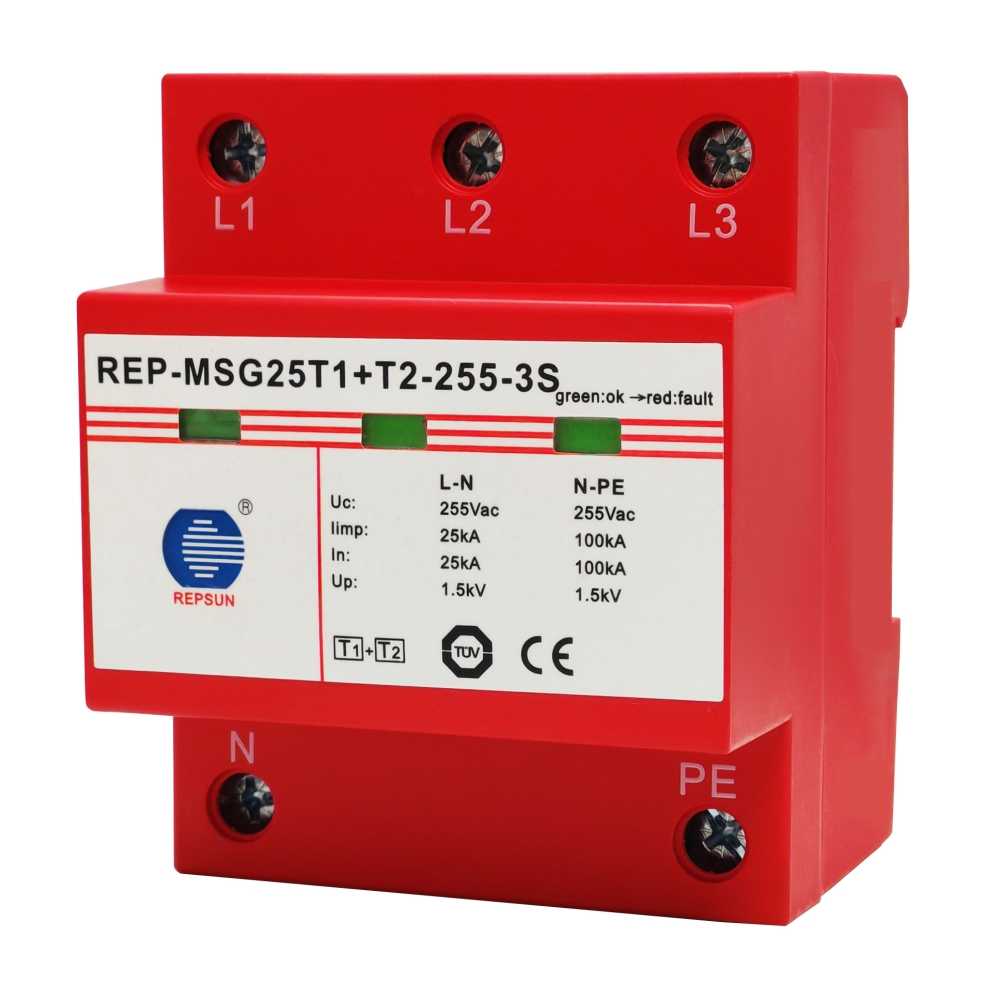

Smallest size T1+T2 SPD, only 36mm for single phase, 72mm for three phases.
Non exhausting encapsulated spark gap technology with extremely high surge capacity.
High surge capacity of 25kA10/350μs per pole, no follow current.
Voltage protection level(Up)≤1.5kV.
LTR energy control technology, directly coordinated to next SPD without additional length

Datasheet

Type	REP-MSG25T1+T2-XXX-XS
The SPD according to IEC/EN 61643	I+II/T1+T2
Energy coordination with terminal equipment (≤5m)	T1+T2+T3
Maximum continuous operating voltage (Uc)	255Vac	320Vac
Lightning impulse current (10/350μs) (Iimp) [L-N,N-PE]	25kA/100kA
Nominal discharge current (8/20μs) (In) [L-N,N-PE]	25kA/100kA
Maximum discharge current (8/20μs) (Imax) [L-N,N-PE]	160kA
Voltage protection level (Up)	≤1.5kV
Operating temperature range	-40℃~+80℃
Response time	≤100ns
Failure indication	Green: Normal ; Red: Failure
Remote alarm contact	Remote alarm contact optional
Degree of protection	IP20
Enclosure material	Thermoplastic; extinguishing degree UL94-V0
Technical feature	No exhausting encapsulated spark gap technology

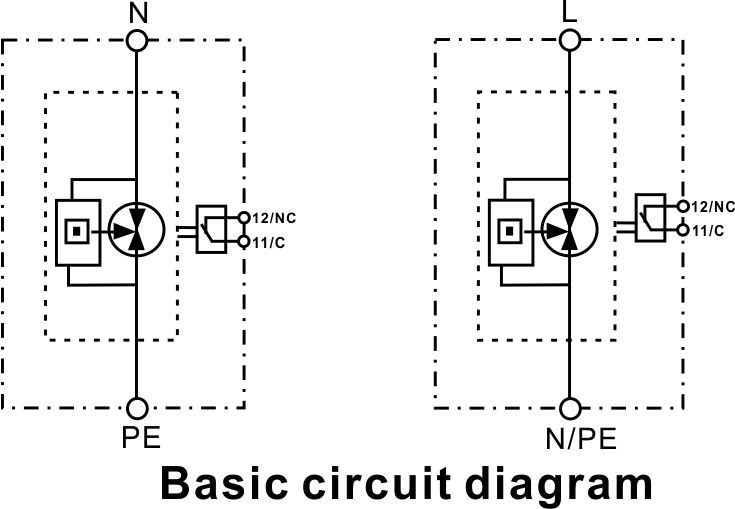

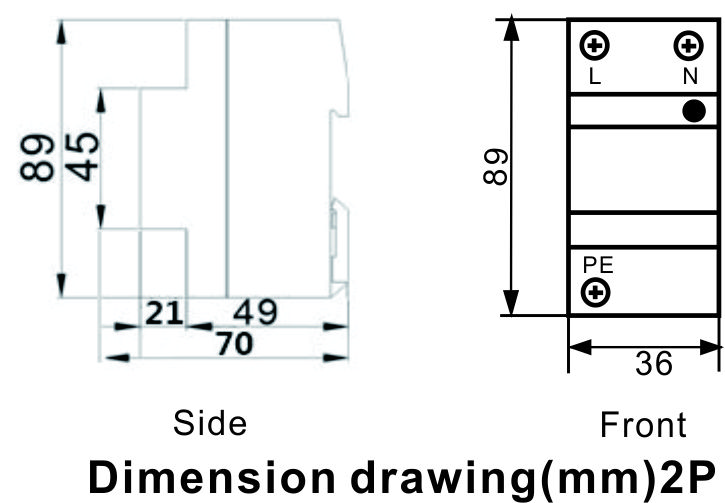

Dimension drawing(mm)	Basic circuit diagram
