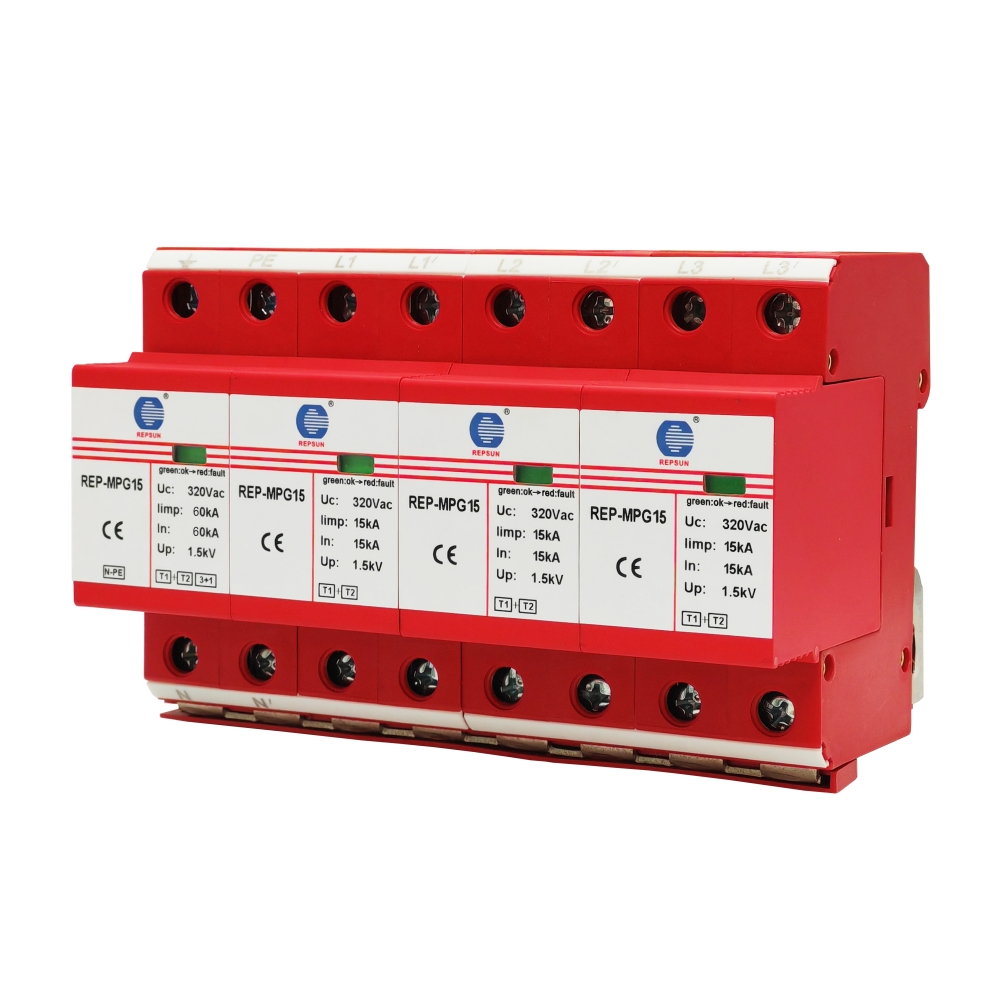

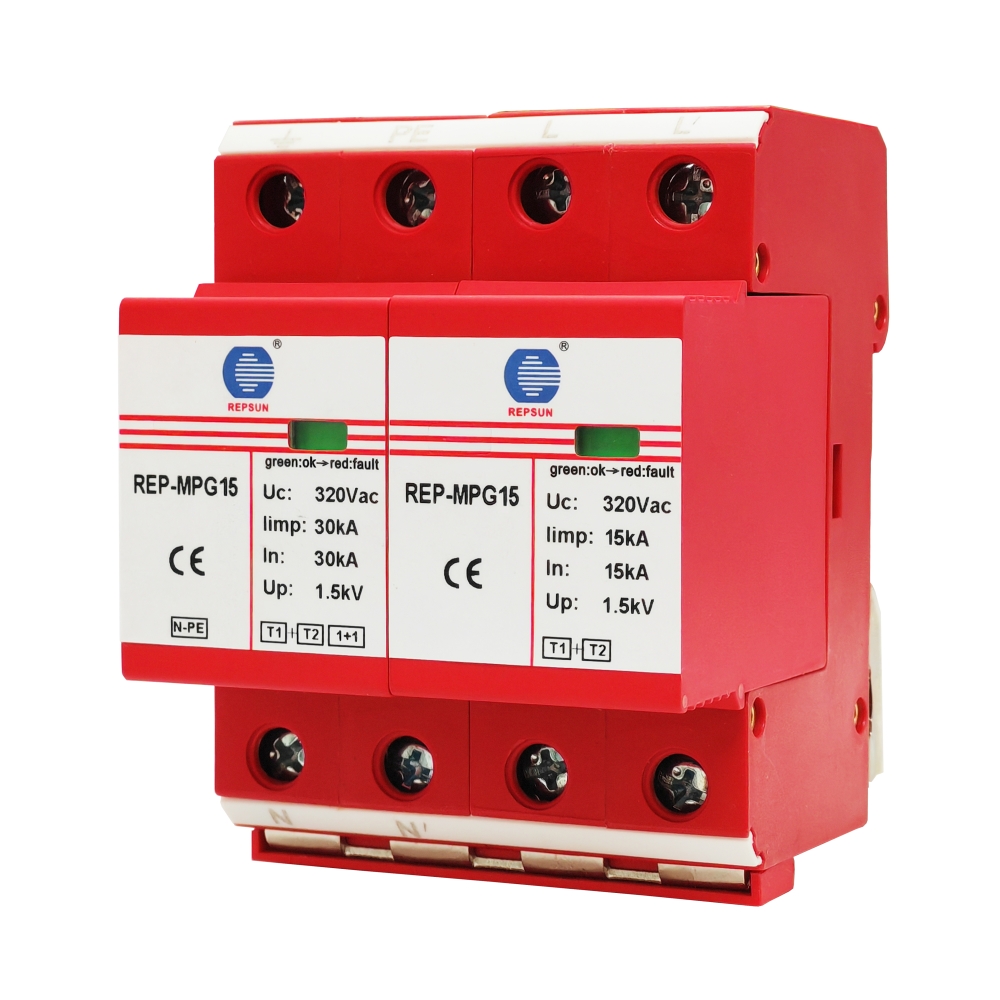

（Combination T1+T2 SPD）REP-MPG15 Series

Name: （Combination T1+T2 SPD）REP-MPG15 Series
SKU: 446
Rating: 5 (1445 reviews)

PRODUCT DETAILS

Features

● Type1+Type2 combination pluggable surge protector.

● Non exhausting encapsulated spark gap technology with extremely high surge capacity.

● Iimp up to 15kA, voltage protection level(Up)≤1.5kV.

● LTR energy control technology, directly coordinated to next SPD without additional length.

Datasheet

Type	REP-MPG15T1+T2-320-XS
The SPD according to IEC/EN 61643	I+II/T1+T2
Maximum continuous operating voltage(Uc)	320Vac
Lightning impulse current(10/350μs)(Iimp)	15kA/60kA
Nominal discharge current(8/20μs)(In)	15kA/60kA
Maximum discharge current(8/20μs)(Imax)	100kA/120kA
Voltage protection level(Up)	≤1. 5kV
Operating temperature range	-40℃~+80℃
Response time	≤100ns
Failure indication	Green: Normal ; Red: Failure

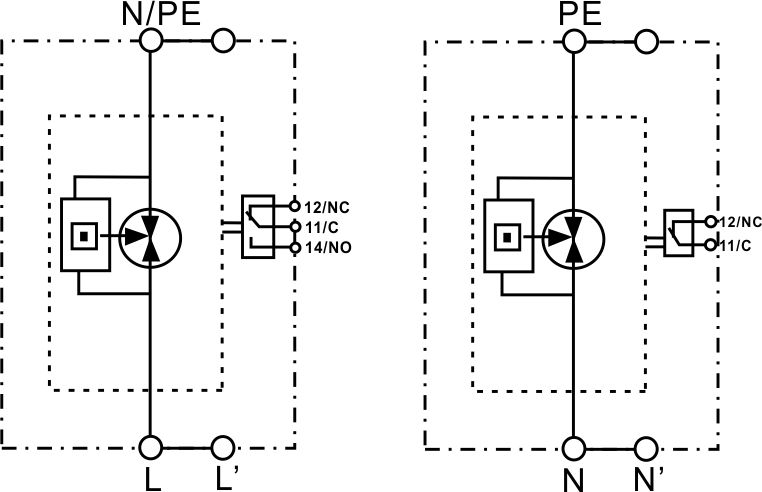

Remote alarm contact	Remote alarm contact optional
Degree of protection	IP20
Enclosure material	Thermoplastic; extinguishing degree UL94-V0
Technical feature	No exhausting encapsulated spark gap technology
