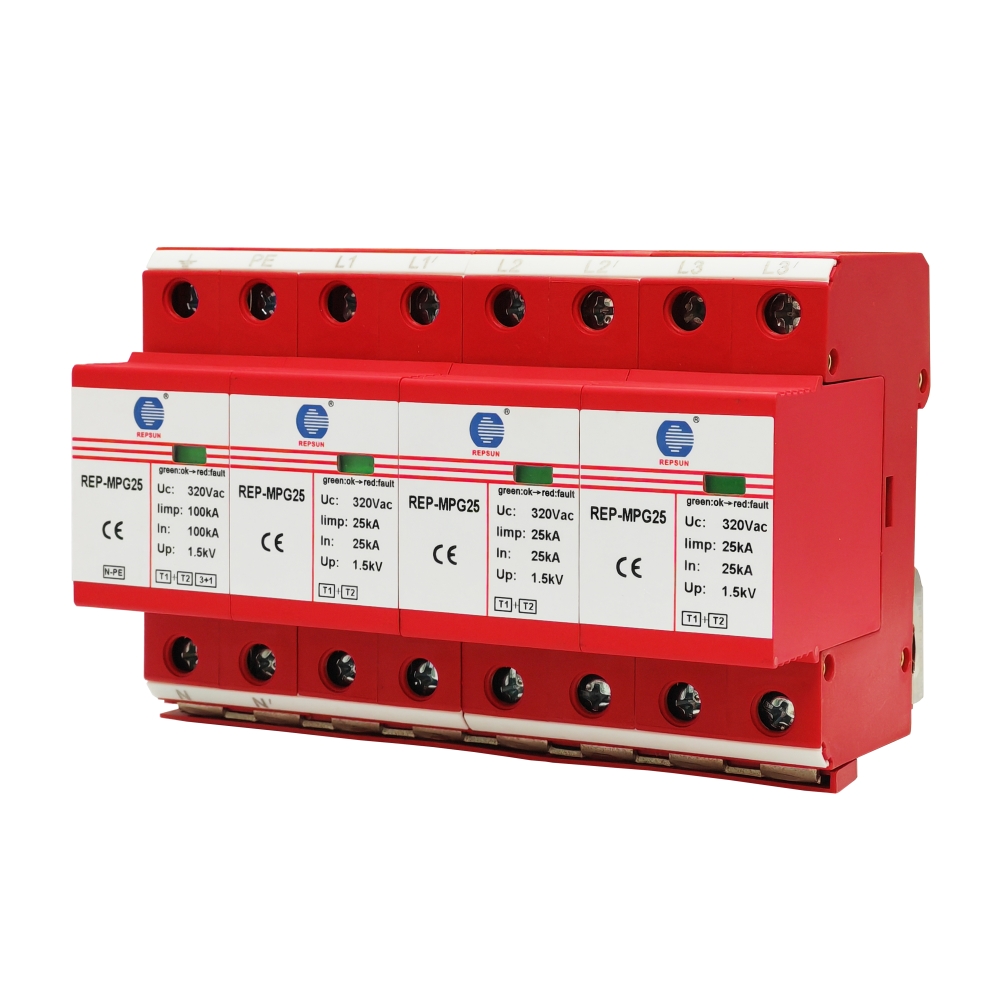

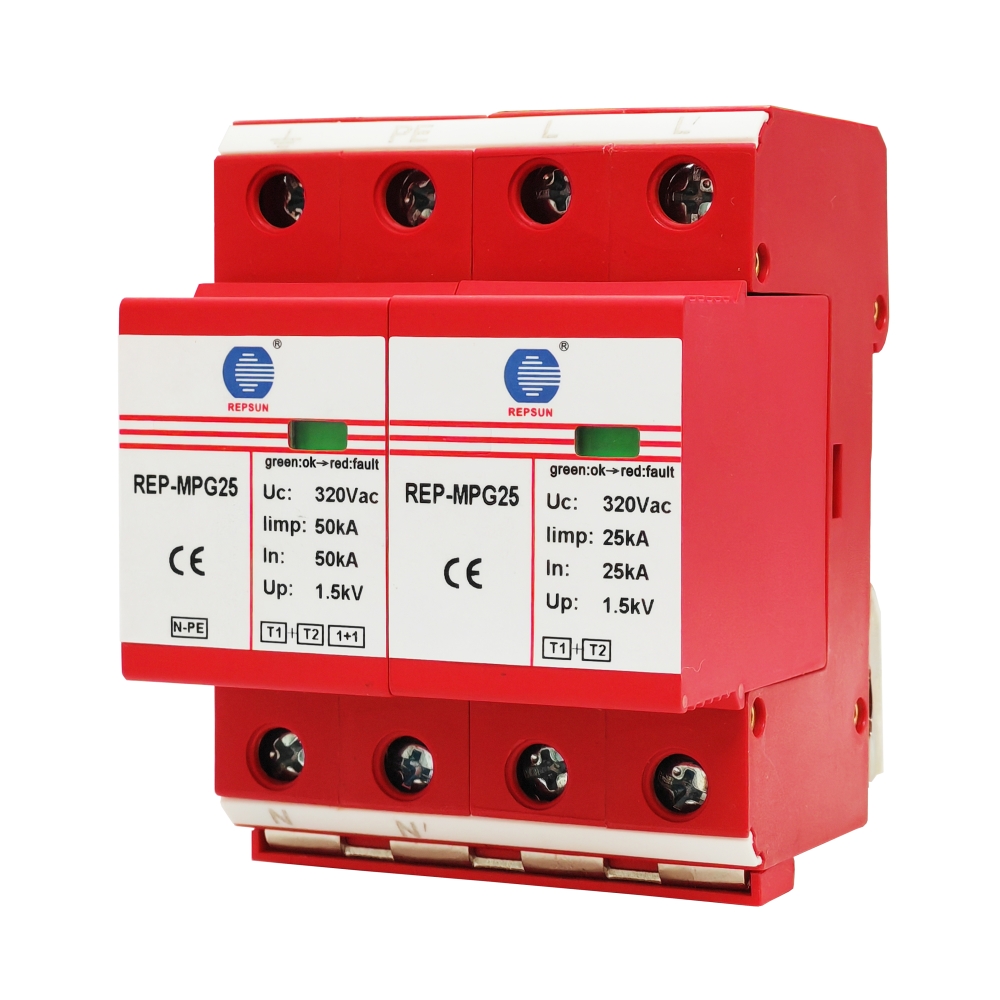

（Combination T1+T2 SPD）REP-MPG25 Series

Features

• Type1+Type2 combination pluggable surge protector.
• Non exhausting encapsulated spark gap technology with extremely high surge capacity.
• Iimp up to 25kA, voltage protection level(Up)≤1.5kV.
• LTR energy control technology, directly coordinated to next SPD without additional length.

Datasheet

Type	REP-MPG25T1+T2-320-XS
The SPD according to IEC/EN 61643	I+II/T1+T2
Maximum continuous operating voltage(Uc)	320Vac
Lightning impulse current(10/350μs)(limp)	25kA/100kA
Nominal discharge current(8/20μs)(In)	25kA/100kA
Maximum discharge current(8/20μs)(Imax)	160kA
Voltage protection level(Up)	≤1. 5kV
Operating temperature range	-40℃~+80℃
Response time	≤100ns
Failure indication	Green: Normal ; Red: Failure
Remote alarm contact	Remote alarm contact optional
Degree of protection	Ip20
Enclosure material	Thermoplastic; extinguishing degree UL94-V0
Technical feature	No exhausting encapsulated spark gap technology
